| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,976 pcs
|
1976 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Halogen Free | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Supplier Device Package | |
| Supplier Package | |
| Technology |
The Bourns® TCS™ DL Series TCS-DL004-750-WH is a high-speed protector featuring dual, well-matched, low resistance, bidirectional transient current suppressors. This device offers superior protection for very high data rate differential lines against faults caused by short circuits, induction, and lightning surges by limiting the maximum current to a safe level.
Key electrical characteristics include a 40V peak impulse voltage withstand, a 750mA typical trigger current, and a typical series resistance of 1.0 Ohm. The channel-to-channel resistance match is typically ±0.02 Ohm, ensuring excellent performance. The device operates within a temperature range of -55 to +125 °C.

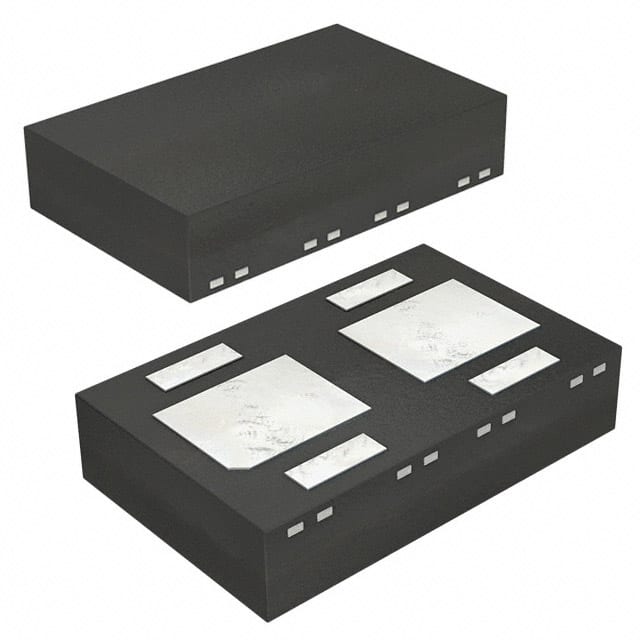

Designed for space-saving applications, the TCS-DL004-750-WH is provided in a small SMT package, specifically a 4-VDFN Exposed Pad, meeting industry standard requirements. It is RoHS compliant and halogen-free, making it suitable for various modern electronic designs.
These protectors are often used in conjunction with low capacitance TVS devices to create an effective barrier against excessive voltages and currents during surge events, safeguarding sensitive high-speed, low-voltage driver and receiver components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak impulse voltage withstand is 40 V for durations less than 1 ms.
It is available in a 4-VDFN Exposed Pad package (also referred to as 6-DFN (4x2.5)) for surface mount assembly.
The operating temperature range is -55 to +125 °C, with storage temperature from -65 to +150 °C.
The typical trigger current is 750 mA.
The typical series resistance is 1.0 ohm, with a channel-to-channel resistance match of ±0.02 ohm.
The typical time to transition from normal operating to current limiting state is 50 ns.
Yes, the device is halogen free as verified by the datasheet.
