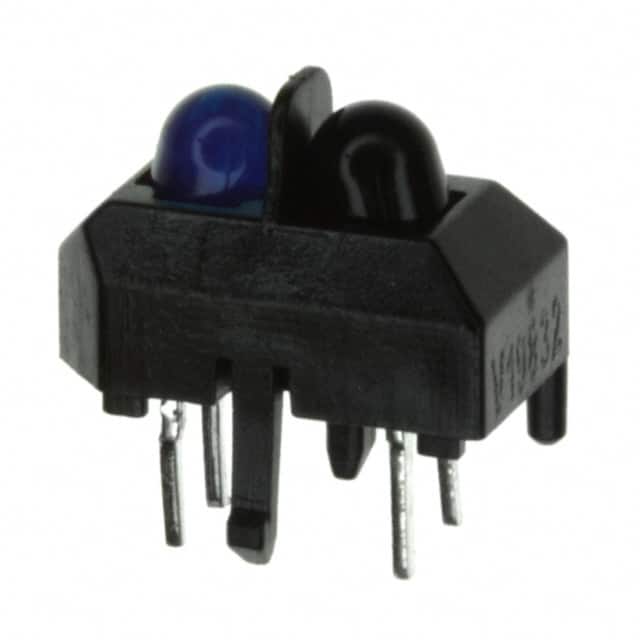

TCRT5000 The Vishay TCRT5000 is a reflective optical sensor with a phototransistor output. It is designed for applications requiring detection of reflective materials.
Mfr Part #:

TCRT5000

Available from 4 distributors
Mfr Name: Vishay
Vishay
The Vishay TCRT5000 is a reflective optical sensor with a phototransistor output. It is designed for applications requiring detection of reflective materials.
✓ Total Stock: 18,678 pcs
$ Price Range: $1.50

TCRT5000 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,180 pcs
On Request
7180 pcs On Request 1 On Request On Request 1741+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
6,985 pcs
On Request
6985 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCRT5000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Lead Style
Mounting Type
Operating Temperature
Output Type
Sensing Distance
Sensing Method
Storage Temperature
Voltage
View Similar Products (0)

TCRT5000 Description

Short technical summary and product information.

The Vishay TCRT5000 is a reflective optical sensor featuring a phototransistor output. This component is housed in a leaded package suitable for PCB mounting via through-hole technology. It offers a sensing distance of up to 15mm with a peak operating distance of 2.5mm.



The sensor operates with a maximum forward current of 60mA and a collector emitter voltage of 70V. It includes a daylight blocking filter and emits infrared light at a wavelength of 950nm. The operating temperature range is from -25°C to +85°C.



Applications for the TCRT5000 include position sensing for shaft encoders, detection of reflective materials like paper and magnetic tapes, and as a limit switch for mechanical motions. Its compact size and reflective sensing capability make it suitable for general-purpose use where space is limited.



The TCRT5000 is RoHS3 compliant and lead-free soldering is supported. It is supplied in tube packaging with a minimum order quantity of 4500 pieces.

TCRT5000 Quick Information

Product Type: Reflective Optical Sensor
Canonical Name: Vishay Semiconductors TCRT5000 Reflective Optical Sensor with Transistor Output
Subcategory: Reflective

TCRT5000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead (Pb)-free soldering released

TCRT5000 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCRT5000 Features

  • Reflective optical sensor with phototransistor output.
  • Maximum sensing distance of 15mm.
  • Through-hole PCB mounting type.
  • Operates at 60mA current and 70V.
  • RoHS3 compliant and lead-free.

TCRT5000 Applications

  • Position sensor for shaft encoders.
  • Detects reflective materials like paper.
  • Used as a limit switch for motion.
  • Suitable for general purpose applications.

TCRT5000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the sensing distance of the TCRT5000?

The TCRT5000 has a maximum sensing distance of 15mm, with a peak operating distance of 2.5mm.

What type of output does the TCRT5000 provide?

The TCRT5000 provides a phototransistor output.

How is the TCRT5000 mounted?

The TCRT5000 is designed for through-hole mounting on a PCB.

What is the operating temperature range for the TCRT5000?

The TCRT5000 operates within an ambient temperature range of -25°C to +85°C.

Is the TCRT5000 RoHS compliant?

Yes, the TCRT5000 is RoHS3 compliant.
