| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

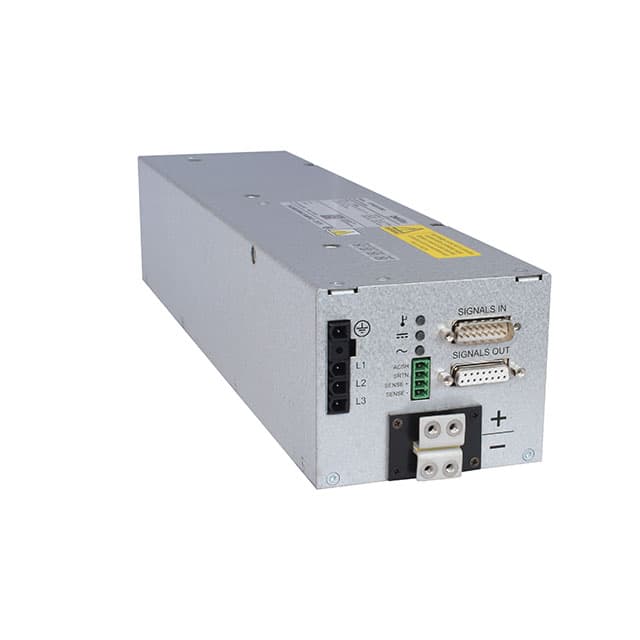

The Bel Power Solutions TCP4000-H090 is a universal 3-phase AC-DC converter designed for industrial applications requiring reliable power conversion. It features a wide worldwide 3-phase input voltage range and an adjustable DC output voltage from 30V to 100V, with a nominal output of 90V.
This converter delivers up to 4000W of output power and supports up to 45A of current. Key electrical specifications include a typical efficiency of 94% and a power factor greater than 0.94. It supports parallel operation for increased power capacity, up to 16 units for a total of 57.6 kW.
The TCP4000-H090 is designed for conduction or liquid cooling, negating the need for fans. It operates within an ambient air temperature range of 0°C to 70°C. The unit is suitable for ITE (Commercial) applications and features adjustable output, load sharing, and PFC. It is also SEMI F47 compliant.
Mounting is via a rack mount configuration. The dimensions are 400.6mm in length, 103.0mm in width, and 84.6mm in height.
Nominal input voltage is 115-277 V (L-N/L-L) or 200-480 V (L-L) with permitted variation of 104-305 V / 180-528 V.
Rack mount.
Cold-plate surface: 0 to 50°C; ambient air: 0 to 70°C.
4000 W with input voltage 340-528 Vrms (L-L); nominal output power is 3500 W.
94% at 400 Vrms (L-L) input and load above 40%.
Yes, up to 16 units can be paralleled for a total power of 57.6 kW.
Yes.
