| Category | |
| Manufacturer Name | |
| Applications | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage | |
| Width |

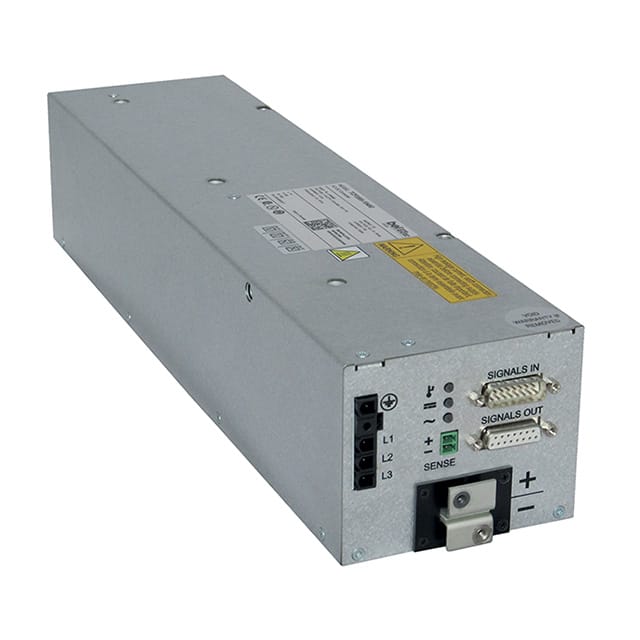

The TCP3500/4000 Series from Bel Power Solutions is a universal 3-phase AC-DC converter designed for industrial applications requiring high power and reliability. This model, TCP3500-1048G, delivers up to 3500W of power with an adjustable output voltage range of 10-50 VDC, nominal at 48 VDC, and a maximum output current of 73 ADC.
It features a wide universal 3-phase AC input voltage range of 180-528 Vrms, operating at 47-63 Hz. The converter boasts a high power density and a typical efficiency of 94%. Conduction cooling (no fan) is utilized, making it suitable for systems with cold-plate or liquid cooling.
Key features include RS485 interfaces for monitoring and control, active current sharing for parallel operation up to 16 units (57.6 kW), and SEMI F47 compliance. The dimensions are 400.6mm x 103.0mm x 84.6mm, and it is designed for rack mounting.
The output voltage range is adjustable from 10 VDC to 50 VDC.
The maximum output current is 73 ADC.
The converter accepts a universal 3-phase AC input voltage range of 180-528 Vrms.
The typical efficiency is 94%.
It utilizes conduction cooling, making it suitable for cold-plate or liquid cooling systems.
The dimensions are 400.6mm in length, 103.0mm in width, and 84.6mm in height.
The operating temperature range for ambient air is 0°C to 70°C.
