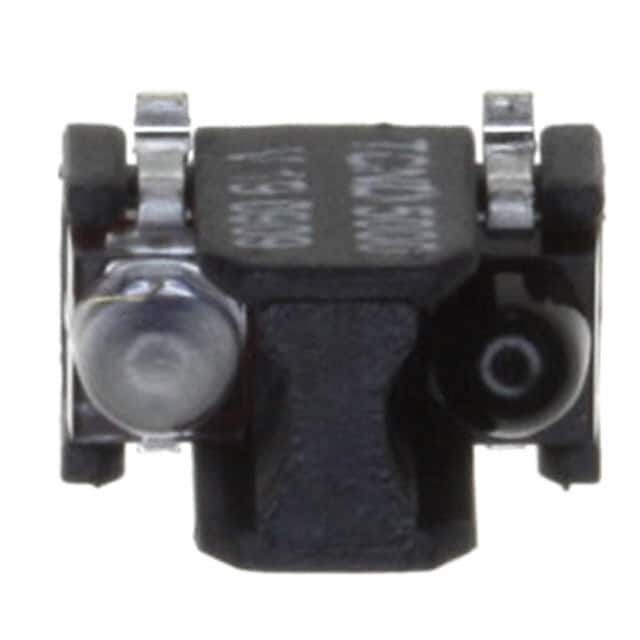

The Vishay Dale TCND5000 is a reflective optical sensor designed for surface mount applications. It integrates an infrared emitter and a PIN photodiode, featuring a package that effectively blocks visible light. This sensor is optimized for proximity, object, and motion sensing applications, as well as touch key interfaces.
The TCND5000 has a peak operating distance of 6 mm and an operating range of 2 mm to 25 mm for relative collector current greater than 20%. It emits light at a wavelength of 940 nm and provides a typical output current of 0.0015 mA under test conditions. The sensor includes a daylight blocking filter and offers high linearity.
This component is supplied in a surface mount package with dimensions of 6 x 4.3 x 3.75 mm. It is designed for lead-free soldering and has a moisture sensitivity level of 4. The operating temperature range is -40 °C to +85 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak operating distance for the TCND5000 sensor is 6 mm.
The operating range for the TCND5000 sensor, within > 20% relative collector current, is 2 mm to 25 mm.
The emitter wavelength of the TCND5000 sensor is 940 nm.
The maximum forward current for the TCND5000 sensor is 100 mA.
The operating temperature range for the TCND5000 sensor is -40 °C to +85 °C.
The RoHS status of the TCND5000 sensor is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the TCND5000 sensor is 1 Unlimited.
