TCM811LERCTR The Microchip Technology TCM811LERCTR is a supervisor IC designed for power management applications. It features a 4.63V threshold and an active low reset.
Mfr Part #:

TCM811LERCTR

Available from 1 distributors
Mfr Name: MICROCHPHS
MICROCHPHS
The Microchip Technology TCM811LERCTR is a supervisor IC designed for power management applications. It features a 4.63V threshold and an active low reset.
✓ Total Stock: 46,000 pcs

TCM811LERCTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
46,000 pcs
On Request
46000 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCM811LERCTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Lead Style
Mounting Type
Number of Voltages Monitored
Output
Package / Case
Reset
Reset Timeout
SVHC Present
Supplier Device Package
Type
View Similar Products (0)

TCM811LERCTR Description

Short technical summary and product information.

The TCM811LERCTR from Microchip Technology is a supervisor integrated circuit designed to monitor power supply voltages and ensure proper system reset. This device operates with a voltage threshold of 4.63V and provides an active low reset signal.



Key electrical characteristics include a reset timeout of 140ms, ensuring a stable reset pulse. The supervisor monitors a single voltage, making it suitable for applications requiring basic power monitoring.

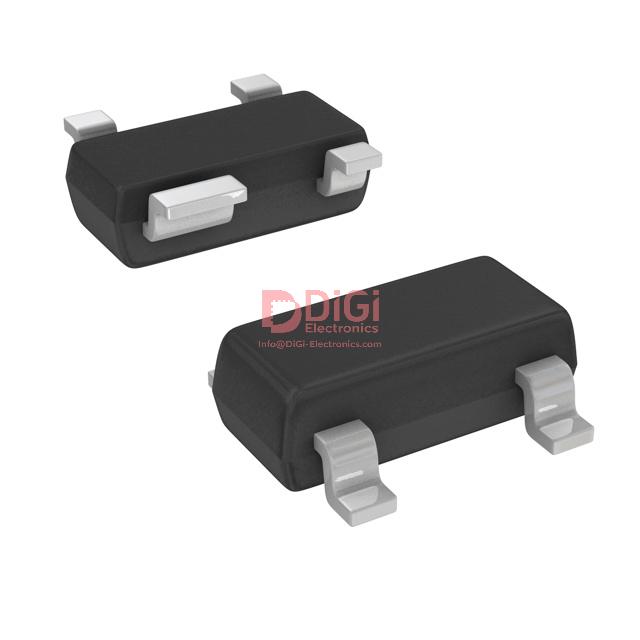

Packaged in a surface-mount SOT-143-4 configuration, the TCM811LERCTR is designed for efficient integration into compact electronic designs. Its operating temperature range is from -40°C to 85°C, accommodating various environmental conditions. This component is ideal for applications needing reliable power-on reset and voltage supervision.



The TCM811LERCTR is classified under power management ICs and specifically within the supervisor subcategory. Its simple reset/power-on reset functionality makes it a versatile component for embedded systems.

TCM811LERCTR Quick Information

Product Type: Supervisor IC
Series: TCM811
Canonical Name: TCM811LERCTR Supervisor IC
Subcategory: Supervisor

TCM811LERCTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCM811LERCTR Features

  • Monitors a single voltage at 4.63V.
  • Provides active low reset signal.
  • Features a 140ms reset timeout.
  • Surface mount SOT-143-4 package.
  • Operates from -40°C to 85°C.

TCM811LERCTR Applications

  • Essential for reliable power-on reset.
  • Used in embedded system designs.
  • Suitable for voltage monitoring circuits.
  • Ensures system stability during power fluctuations.

TCM811LERCTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage threshold of the TCM811LERCTR?

The voltage threshold is 4.63V.

What is the reset timeout of the TCM811LERCTR?

The reset timeout is 140ms.

What is the operating temperature range of the TCM811LERCTR?

The operating temperature range is -40°C to 85°C.

What is the package type of the TCM811LERCTR?

The package type is SOT-143-4.

What is the output type of the TCM811LERCTR?

The output type is push-pull, totem pole.

What is the reset type of the TCM811LERCTR?

The reset type is active low.

How many voltages does the TCM811LERCTR monitor?

It monitors 1 voltage.
