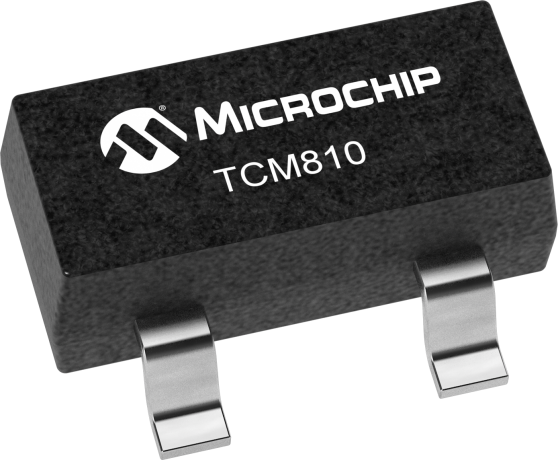

TCM810RENB713 The Microchip Technology TCM810RENB713 is a cost-effective system supervisor IC designed to monitor VDD in digital systems. It provides a reset signal to the host processor when VDD falls below a threshold.
Mfr Part #:

TCM810RENB713

Available from 1 distributors
Mfr Name: MICROCHPHS
MICROCHPHS
The Microchip Technology TCM810RENB713 is a cost-effective system supervisor IC designed to monitor VDD in digital systems. It provides a reset signal to the host processor when VDD falls below a threshold.
✓ Total Stock: 46,000 pcs

TCM810RENB713 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
46,000 pcs
On Request
46000 pcs On Request 1 On Request On Request 2018+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCM810RENB713 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Lead Spacing
Lead Style
Mounting Type
Package / Case
Supply Current
Tape & Reel
View Similar Products (0)

TCM810RENB713 Description

Short technical summary and product information.

The TCM810RENB713 from Microchip Technology is a system supervisor circuit designed for reliable power supply monitoring in digital systems. It features precision monitoring for nominal system voltages including 2.5V, 3.0V, 3.3V, and 5.0V.



This device provides a minimum reset time-out period of 140ms after VDD rises above the reset threshold. The RESET output is active-low for the TCM809 variant and active-high for the TCM810. The output remains valid down to 1.0V.



With a low supply current of typically 9 µA at 3.3V, the TCM810RENB713 is suitable for battery-powered applications. It is optimized to reject fast transient glitches on the VDD line and requires no external components.



The TCM810RENB713 is available in compact 3-pin SC-70 and SOT-23B surface-mount packages, making it ideal for space-constrained designs. The operating temperature range extends to +125°C for the V variant.

TCM810RENB713 Quick Information

Product Type: System Supervisor IC
Series: TCM810
Canonical Name: TCM810RENB713 System Supervisor IC
Subcategory: Power Management ICs

TCM810RENB713 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCM810RENB713 Features

  • Monitors 2.5V, 3.0V, 3.3V, 5.0V system voltages.
  • Provides 140ms minimum reset timeout.
  • Low 9µA typical supply current.
  • Available in SC-70 and SOT-23 packages.
  • Optimized for VDD transient immunity.

TCM810RENB713 Applications

  • Monitors critical microcontroller power supplies.
  • Suitable for battery-powered equipment.
  • Used in embedded systems.
  • Applicable in computer systems.
  • Supports automotive applications.

TCM810RENB713 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TCM810RENB713?

The TCM810RENB713 monitors nominal system voltages of 2.5V, 3.0V, 3.3V, and 5.0V, with an absolute maximum supply voltage of 6.0V.

What packages is the TCM810RENB713 available in?

It is available in SC-70-3 and SOT-23-3 surface-mount packages.

What is the operating temperature range?

The industrial range is -40°C to +85°C for SC-70 (E) and the extended range is -40°C to +125°C for SOT-23 and SC-70 (V) packages.

What is the RESET timeout period?

The minimum RESET timeout period is 140 ms.

What is the supply current consumption?

The typical supply current is 9 µA at 3.3V.

Is the RESET output active-high or active-low?

The TCM810RENB713 has an active-high RESET output.
