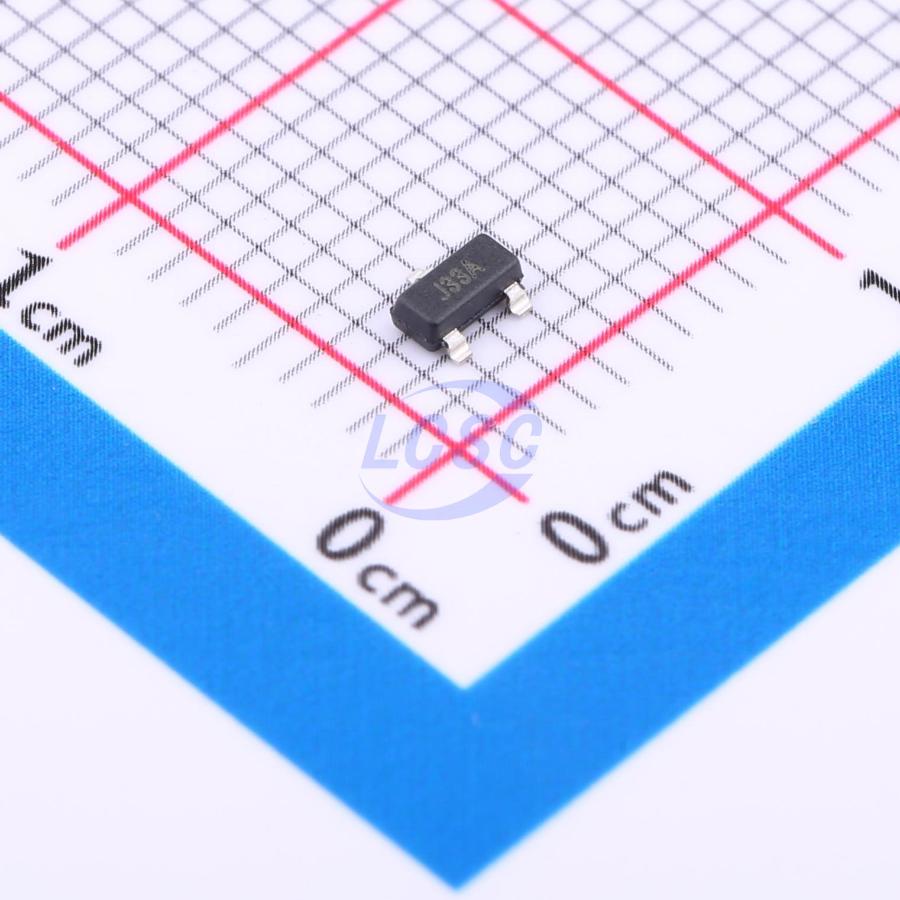

The Microchip Technology TCM809TENB713 is a cost-effective system supervisor circuit designed to monitor VDD in digital systems, providing a reset signal to the host processor when necessary. It supports nominal system voltage supplies of 2.5V, 3.0V, 3.3V, and 5.0V.
Key electrical characteristics include a minimum reset timeout period of 140 ms and a typical low supply current of 9 µA. The RESET output is active down to VDD = 1V. The device is optimized to reject fast transient glitches on the VDD line, making it suitable for battery-powered applications.
Available in compact 3-pin SC-70 and SOT-23B packages, the TCM809TENB713 is designed for surface mount applications. It operates across a wide temperature range, from -40°C to +125°C in its extended temperature variant.
This supervisor IC is ideal for critical microcontroller power supply monitoring in computers, embedded systems, and automotive applications.
It monitors 2.5V, 3.0V, 3.3V, and 5.0V nominal system voltages.
It operates from -40°C to +85°C in SC-70 (E) package and -40°C to +125°C in SOT-23 and SC-70 (V) packages.
It is available in SC-70 and SOT-23B surface-mount packages.
The reset timeout period is minimum 140ms.
The typical supply current is 9µA.
The maximum supply voltage is 6V.
Yes, the reset output remains valid down to VDD = 1.0V.
