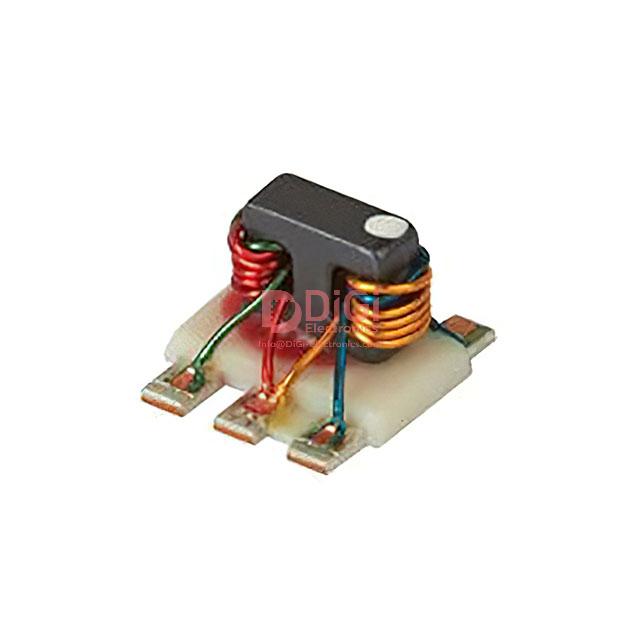

TCM4-19 The Mini-Circuits TCM4-19+ is an RF Balun operating from 10MHz to 1.9GHz. It features a 1:4 impedance ratio and comes in a 6-SMD (5 Leads), Flat Lead package.
Mfr Part #:

TCM4-19

Available from 3 distributors
Mfr Name: Mini-Circuits
Mini-Circuits
The Mini-Circuits TCM4-19+ is an RF Balun operating from 10MHz to 1.9GHz. It features a 1:4 impedance ratio and comes in a 6-SMD (5 Leads), Flat Lead package.
