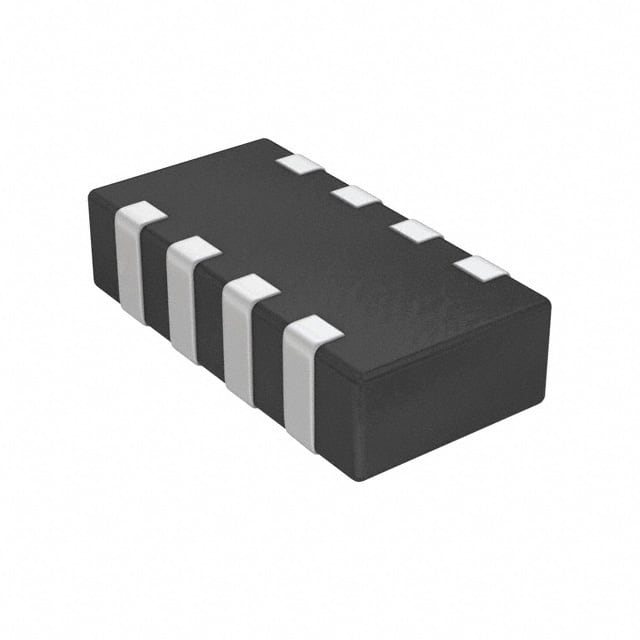

The TDK Corporation TCM2010H-900-4P-T000 is a thin film common mode filter array designed for high-speed differential signal interfaces such as HDMI and S-ATA. This compact component, measuring 1.25mm x 1.00mm, integrates two circuits to suppress radiated emissions without distorting differential signals.
Key electrical characteristics include a common mode impedance of 90 Ohms at 100 MHz and a cut-off frequency of 6 GHz for differential signals. It has a maximum DC resistance of 1 Ohm, a rated current of 100mA, and a voltage rating of 10V. The operating temperature range is -25°C to 85°C.
This filter is suitable for applications requiring noise suppression in high-speed data lines. It features a surface mount package (0504 or 1210 metric) and is supplied on a reel of 4000 pieces, indicating suitability for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common mode impedance is 90 Ohms at 100 MHz.
The cut-off frequency for differential signals is 6 GHz.
The maximum rated current is 100mA.
The operating temperature range is -25°C to 85°C.
It is in a 0504 (1210 Metric), 4 Lead package.
This component is surface mounted.
