| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,800 pcs
|
21800 pcs | On Request | 1 | 603 | On Request | 11+ | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Voltage Rating | |
| Width |

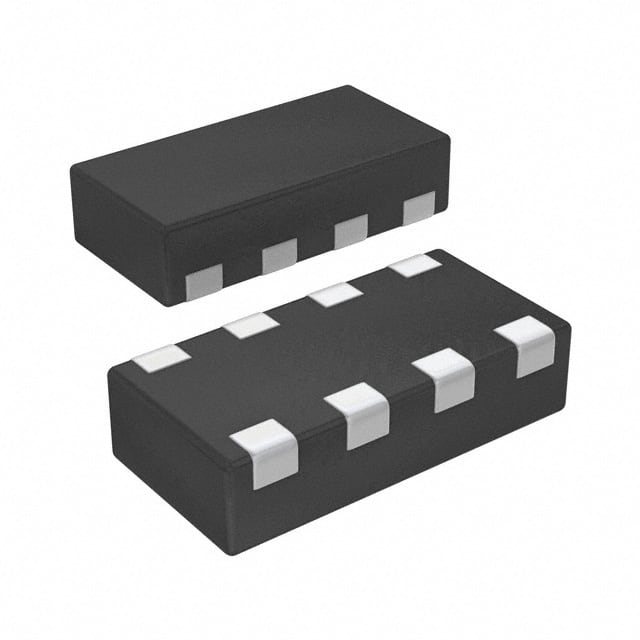

The TDK TCM1608G-201-4P-T200 is a common mode choke filter from the TCM-G series, designed for high-speed differential signal lines such as USB 2.0 and LVDS. It utilizes thin-film processing for effective EMC suppression across a wide frequency range.
Key electrical specifications include a common mode impedance of 200 Ohms at 100MHz, a maximum DC resistance of 4 Ohms, a maximum current rating of 50mA, and a voltage rating of 5V. It operates across 4 lines and is suitable for noise countermeasures in mobile devices and consumer products.
This component is housed in a compact 0603 (1608 Metric) package with 8 leads, designed for surface mounting. The operating temperature range is -25°C to +85°C. Its dimensions are 1.60mm x 0.80mm with a maximum height of 0.50mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to 85°C.
0603 (1608 Metric) 8 Lead surface mount.
5V.
200 Ohm.
4 lines.
4 Ohm.
50mA.
