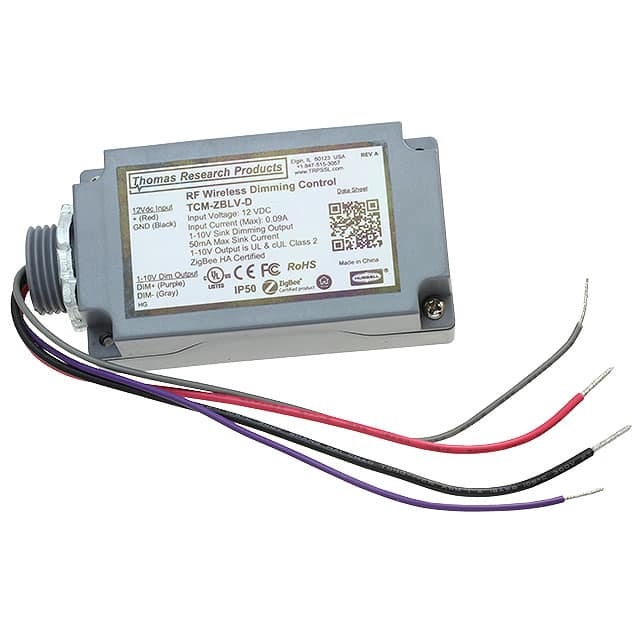

The Thomas Research Products TCM-ZBLV-D is a ZigBee wireless dimming control module, specifically designed for integration with 0-10V dimmable LED power supplies and electronic ballasts compliant with IEC60929 Annex E2. This module operates on the 2.4GHz frequency band with a transmit power of +20 dBm, enabling reliable wireless communication for lighting control.
Key electrical specifications include an input voltage range of 11-13 VDC and a maximum input current of 0.09A. It provides 0-10V analog dimming control with a 50mA sink capability. The module is housed in a gray, 5VA PC ABS plastic case and features a dust-proof IP50 design.
Environmental specifications include an operating temperature range of -20°C to +60°C and a maximum case temperature of 72°C. It is UL Dry & Damp location rated and UL2043 Plenum Rated for safe installation in ceiling spaces. The module also includes a reset button for easy recommissioning and is designed for one module per luminaire. It is compatible with Daintree Networks Controlscope and ZigBee HA certified.
This dimming module is suitable for applications requiring wireless control of lighting systems, offering flexibility and compliance with safety standards. Its robust design and certifications make it a reliable choice for commercial and industrial lighting installations.
11-13 VDC.
-20°C to +60°C.
Yes, it is UL2043 Plenum Rated.
0-10V analog dimming control with 50 mA sink.
ZigBee with +20 dBm transmit power.
Gray 5VA PC ABS plastic.
2.1 oz (59 g).
