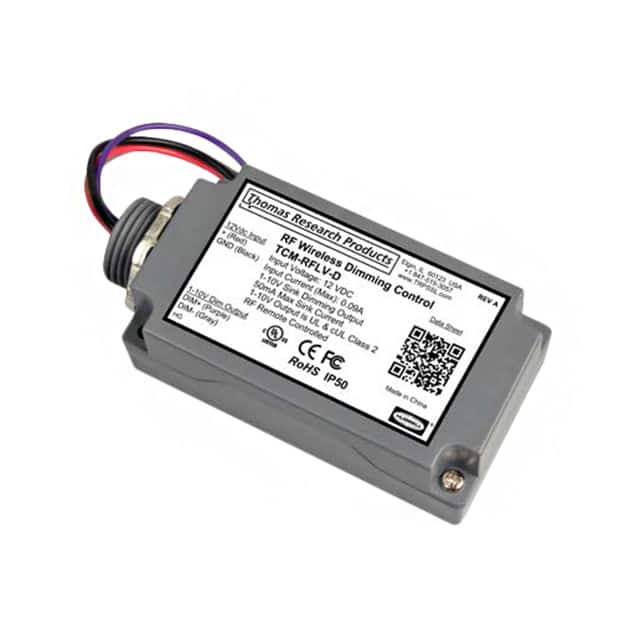

The Thomas Research Products TCM-RFLV-D is a wireless lighting module designed for 0-10V dimmable LED power supplies. This RF cordless dimming control module operates within an input voltage range of 11-13Vdc and features 0-10V analog dimming control with a 50mA sink capability.
Environmental specifications include an operating temperature range of -20°C to +60°C and a maximum case temperature of 72°C. The module is IP50 dust-proof rated and UL listed for dry and damp locations, with UL2043 plenum rating for ceiling space installation. It is compatible with LED drivers and electronic ballasts that comply with IEC60929 Annex E2.
The TCM-RFLV-D utilizes a 2.4GHz RF remote control for wireless brightness adjustment. The module can be synced with up to 20 separate remotes, and each remote can control up to 20 modules per group. The module is constructed from gray 5VA PC ABS plastic and comes with a 5-year warranty.
11 to 13 Vdc.
-20°C to +60°C.
65 to 98 feet.
0-10V analog dimming.
Yes, it is FCC 47CFR Part 15 Class B compliant.
Yes, it is UL2043 plenum rated for use in ceiling spaces.
5 years.
