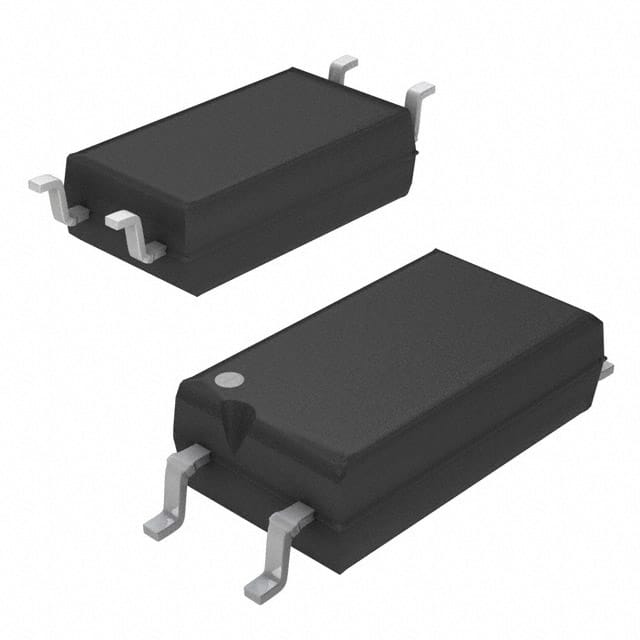

The Vishay TCLT1003 is an optocoupler with a phototransistor output, housed in a 4-lead SOP4L package. It provides a high isolation voltage of 5000Vrms, making it suitable for applications where electrical isolation is critical.
Key electrical characteristics include a maximum forward current of 60 mA and a maximum collector current of 50 mA. The device offers a typical current transfer ratio (CTR) flexibility, with a minimum CTR of 100% at 10 mA and a maximum CTR of 200% at 10 mA. The maximum collector emitter voltage is 70 V, and the maximum collector emitter saturation voltage is 300 mV.
This optocoupler is designed for use in switchmode power supplies, computer peripheral interfaces, and microprocessor system interfaces. Its SMD low profile 4-lead package facilitates surface mount assembly.
The operating temperature range is -55°C to 100°C. The device is available on tape and reel, suitable for automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TCLT1003 optocoupler has an isolation voltage of 5000Vrms.
The maximum forward current for the TCLT1003 is 60 mA.
The TCLT1003 is available in a 4-SOP package, also referred to as SOP-4L, suitable for surface mounting.
The operating temperature range for the TCLT1003 is -55°C to 100°C.
The TCLT1003 has a minimum CTR of 100% and a maximum CTR of 200% at 10 mA.
