| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) (Max) | |
| Height | |
| Height (Max) | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Rated Current | |
| Voltage | |
| Width |

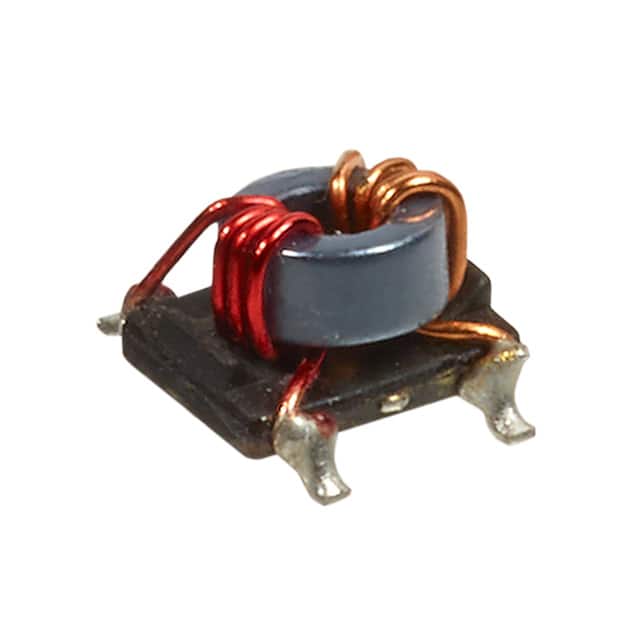

The Traco Power TCK-138 is a common mode choke suitable for various electronic filtering applications. It is designed for surface mount installation and features a horizontal, 4 gull wing package.
Key electrical specifications include an inductance of 18.2 µH (each winding) at 100 kHz / 1 V, a maximum DC resistance of 11 mΩ, a maximum rated current of 1.44 A, and a maximum rated voltage of 500 VDC between windings. The operating temperature range is -40°C to +105°C.
Mechanical dimensions include a length of 6.5 mm, a width of 6.0 mm, and a maximum height of 4.50 mm. The component has 2 lines and is constructed for reliable performance in demanding environments.
This common mode choke is manufactured by Traco Power and is identified by the part number TCK-138. Its robust design and specifications make it a suitable choice for noise suppression and signal integrity applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of each winding is 18.2 µH ±25% at 100 kHz / 1 V.
The maximum rated current is 1.44 A.
The maximum rated voltage is 500 VDC between windings.
The operating temperature range is -40°C to +105°C.
The mounting type is Surface Mount.
The datasheet states RoHS Exemptions: No Exemptions.
