TCAN4550RGYR The Texas Instruments TCAN4550RGYR is a CAN FD controller with an integrated transceiver, supporting data rates up to 8 Mbps. It is designed for robust communication with features like ±42V bus fault protection.
Mfr Part #:

TCAN4550RGYR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TCAN4550RGYR is a CAN FD controller with an integrated transceiver, supporting data rates up to 8 Mbps. It is designed for robust communication with features like ±42V bus fault protection.
✓ Total Stock: 16,068 pcs
$ Price Range: $1.16

TCAN4550RGYR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
15,067 pcs
On Request
15067 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCAN4550RGYR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Supplier Device Package
Supplier Package
Tape & Reel
View Similar Products (0)

TCAN4550RGYR Description

Short technical summary and product information.

The TCAN4550RGYR from Texas Instruments is a versatile CAN FD controller featuring an integrated CAN FD transceiver. This component supports high data rates up to 8 Mbps, meeting ISO11898-1:2015 and ISO11898-2:2016 standards. It offers backward compatibility with Classic CAN and operates with 3.3 V to 5 V input/output logic, making it suitable for a wide range of microprocessors.



Key electrical features include ±42 V bus fault protection and ±12 V common mode voltage support, ensuring reliable operation in demanding environments. The device operates across a temperature range of -40°C to 125°C. It includes multiple operating modes such as normal, standby, sleep, and failsafe, along with power-up and power-down glitch-free operation.

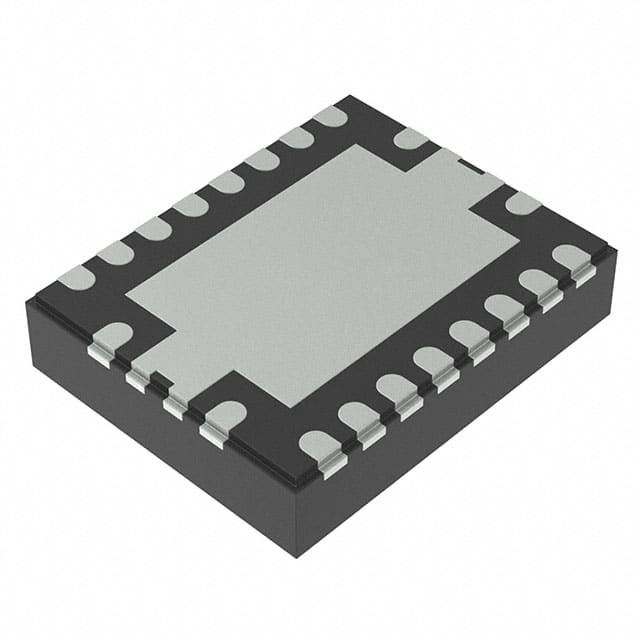

The TCAN4550RGYR is housed in a 20-VFQFN Exposed Pad package, designed for surface mounting with wettable flanks. It is supplied on tape and reel with a standard quantity of 250 units. The high impedance of its bus and logic terminals ensures minimal load on the operating bus or application when unpowered.



This CAN FD controller is ideal for automotive and industrial applications requiring reliable and high-speed serial communication. Its integrated design simplifies system architecture and reduces component count.

TCAN4550RGYR Quick Information

Product Type: CAN Controller
Canonical Name: TCAN4550 CAN FD Controller with Integrated Transceiver
Subcategory: CAN FD Controller

TCAN4550RGYR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCAN4550RGYR Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCAN4550RGYR Features

  • CAN FD controller with integrated transceiver.
  • Supports data rates up to 8 Mbps.
  • Features ±42V bus fault protection.
  • Operates with 3.3V to 5V logic.
  • Surface mount 20-VFQFN package.

TCAN4550RGYR Applications

  • Ideal for automotive communication systems.
  • Suitable for industrial automation networks.
  • Used in robust serial data links.
  • Enables high-speed CAN FD communication.

TCAN4550RGYR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum CAN FD data rate supported by the TCAN4550RGYR?

The TCAN4550RGYR supports CAN FD data rates up to 8 Mbps.

What is the operating temperature range for the TCAN4550RGYR?

The TCAN4550RGYR operates within a temperature range of -40°C to 125°C.

What is the input/output logic voltage range for the TCAN4550RGYR?

The TCAN4550RGYR supports an input/output logic voltage range of 3.3 V to 5 V.

What type of package does the TCAN4550RGYR come in?

The TCAN4550RGYR comes in a 20-VFQFN Exposed Pad package.

What is the maximum SPI clock speed for the TCAN4550RGYR?

The TCAN4550RGYR supports an SPI clock speed of up to 18 MHz.

What is the bus fault protection voltage for the TCAN4550RGYR?

The TCAN4550RGYR features ±42 V bus fault protection.
