| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240,000 pcs
|
240000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Channels | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Supply Voltage | |
| Type | |
| Voltage |
The TCAN1463DMTRQ1 from Texas Instruments is a high-speed Controller Area Network (CAN) transceiver designed for automotive applications. It meets the physical layer requirements of ISO 11898-2:2016 and supports both classic CAN and CAN FD data rates up to 8 Mbps.
This transceiver implements Signal Improvement Capability (SIC) as defined in CiA 601-4, actively enhancing bus signals by reducing ringing and improving bit symmetry. This capability is crucial for achieving higher throughput in complex network topologies, especially at speeds like 2 Mbps, 5 Mbps, or beyond in large networks.
The device operates within a wide input voltage range and supports VIO level shifting from 1.7 V to 5.5 V. It offers multiple operating modes including Normal, Silent, Standby, and Low-power sleep mode. Protection features include ±58-V CAN bus fault tolerance, load dump support, IEC ESD protection, undervoltage protection, and thermal shutdown protection.

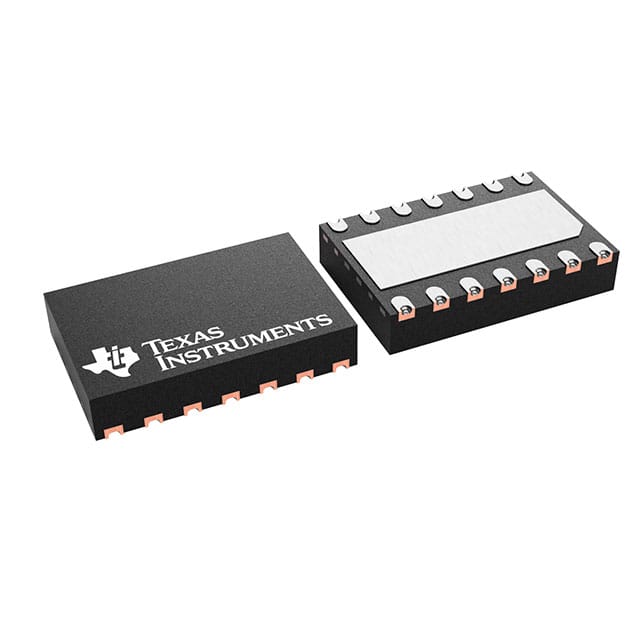

Available in a 14-pin VSON package with wettable flanks, the TCAN1463DMTRQ1 is suitable for surface mount applications and facilitates improved automated optical inspection (AOI). Its AEC-Q100 (grade 1) qualification makes it ideal for demanding automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TCAN1463DMTRQ1 supports CAN, CAN FD, and CAN SIC protocols.
The maximum signaling rate is 8 Mbps.
-40°C to 150°C.
It operates within 4.5V to 5.5V supply voltage.
It is packaged in a 14-VSON (3x4.5mm) surface mount package.
Yes, it is RoHS3 compliant.
