TCAN1462VDRBRQ1 The Texas Instruments TCAN1462VDRBRQ1 is an automotive-grade CAN FD transceiver with signal improvement capability and standby mode. It operates from a 4.5V to 5.5V supply voltage.
Mfr Part #:

TCAN1462VDRBRQ1

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TCAN1462VDRBRQ1 is an automotive-grade CAN FD transceiver with signal improvement capability and standby mode. It operates from a 4.5V to 5.5V supply voltage.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.52

TCAN1462VDRBRQ1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 25+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCAN1462VDRBRQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Data Rate
Duplex
ESD Protection
Mounting Type
Number of Channels
Number of Drivers
Operating Temperature
Operating Voltage
Protocol
Receiver Hysteresis
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

TCAN1462VDRBRQ1 Description

Short technical summary and product information.

The TCAN1462VDRBRQ1 from Texas Instruments is a fault-protected CAN FD transceiver designed for automotive applications. It supports classical CAN and CAN FD protocols up to 8Mbps, actively improving bus signal integrity by reducing ringing effects in complex topologies.



This transceiver features a supply voltage range of 4.5V to 5.5V and an I/O supply voltage that supports level shifting from 1.7V to 5.5V. It operates within an extended temperature range of -40°C to 125°C. Protection features include ±58V ESD protection on bus pins, CAN bus fault tolerance, and thermal shutdown protection.

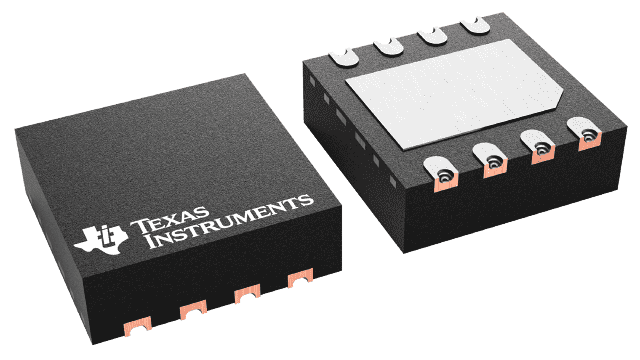

The TCAN1462VDRBRQ1 is available in an 8-SON (3x3) package, suitable for surface mount with wettable flanks for automated optical inspection. It also offers a low-power standby mode with remote wake-up capability and passive behavior when unpowered, ensuring bus and logic terminals remain high impedance.



Key specifications include a signaling rate of 8Mbps, 1 channel, and half-duplex communication. It meets ISO 11898-2:2016 and CiA 601-4 standards, making it backward compatible with classic CAN networks.

TCAN1462VDRBRQ1 Quick Information

Product Type: CAN Transceiver
Canonical Name: TCAN1462VDRBRQ1 Automotive Fault-Protected CAN FD Transceiver with Signal Improvement Capability (SIC) and Standby Mode
Subcategory: CAN Transceiver

TCAN1462VDRBRQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCAN1462VDRBRQ1 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCAN1462VDRBRQ1 Features

  • Automotive grade CAN FD transceiver.
  • Supports CAN and CAN FD up to 8Mbps.
  • Signal improvement capability reduces ringing.
  • Wide supply voltage range 4.5V to 5.5V.
  • Low-power standby mode with wake-up.

TCAN1462VDRBRQ1 Applications

  • Suitable for automotive CAN networks.
  • Used in vehicle communication systems.
  • Ideal for bus fault-tolerant transceivers.
  • Applicable in automotive safety and signaling.
  • Supports high-speed CAN FD communication.

TCAN1462VDRBRQ1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the TCAN1462VDRBRQ1?

The supply voltage for the TCAN1462VDRBRQ1 is between 4.5V and 5.5V.

What is the maximum data rate of the TCAN1462VDRBRQ1?

The TCAN1462VDRBRQ1 supports a maximum data rate of 8Mbps.

What is the operating temperature range for this CAN transceiver?

The operating temperature range for the TCAN1462VDRBRQ1 is -40°C to 125°C.

What package type is the TCAN1462VDRBRQ1 supplied in?

The TCAN1462VDRBRQ1 is supplied in an 8-SON (3x3) package.

Does the TCAN1462VDRBRQ1 support CAN FD?

Yes, the TCAN1462VDRBRQ1 supports CAN FD protocols up to 8Mbps.

What are the bus fault protection capabilities of the TCAN1462VDRBRQ1?

The TCAN1462VDRBRQ1 offers ±58V ESD protection on bus pins and is CAN bus fault tolerant.
