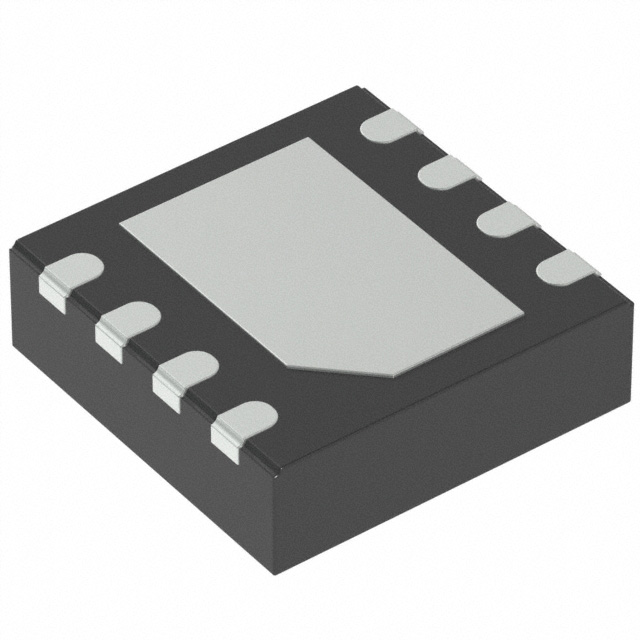

The TCAN1051VDRBTQ1 from Texas Instruments is a robust automotive fault-protected CAN transceiver. It supports both classic CAN and CAN FD protocols, with a maximum signaling rate of 2 Mbps. This transceiver is designed to operate within a voltage range of 4.5V to 5.5V and features a wide operating temperature range from -55°C to 125°C.
Key features include ±58V bus fault protection, ±15kV ESD protection (HBM), and a typical loop delay of 110 ns, ensuring reliable data transmission. The device is qualified for automotive applications under AEC-Q100 standards and comes in an 8-VSON (3x3 mm) package suitable for surface mounting.
With its high data rates, enhanced timing margins, and protection features like thermal shutdown and undervoltage protection, the TCAN1051VDRBTQ1 is ideal for demanding automotive networking applications. Its passive behavior when unpowered and glitch-free operation during power up/down further enhance its suitability for automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.04 | $1.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 5.5V.
The operating temperature range is -55°C to 125°C.
It is supplied in an 8-VSON (3x3mm) package.
It supports CAN and CAN FD protocols.
The maximum signaling rate is 2 Mbps.
The bus fault protection is ±58V.
