| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,294 pcs
|
7294 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| -40°C ~ 85°C (TA) | |
| 0.4MHz | |
| 0.9V | |
| 0.9V to 5.5V and 2.7V to 5.5V | |
| 0.9V to 5.5V on A side | |
| 0.9V ~ 5.5V, 2.7V ~ 5.5V | |
| 1 | |
| 1.6mm × 1.6mm, 0.4mm height, 0.5mm pitch QFN package | |
| 127.2ns | |
| 2.7V | |
| 2.7V to 5.5V on B side | |
| 3mm × 3mm Industry standard MSOP package | |
| 400kHz | |
| 5.5-V Tolerant I2C and enable input | |
| 5.5V | |
| 8-X2QFN (1.6x1.6) | |
| 8-XFQFN Exposed Pad | |
| Accommodates standard mode and fast mode I2C devices and multiple controllers | |
| Active HIGH repeater enable input | |
| Applications | |
| Buffer, Enable pin | |
| Capacitance | |
| Current | |
| Data Rate (Max) | |
| Delay Time | |
| ESD protection exceeds JESD 22 2000V Human-body model (A114-A), 1000V Charged-device model (C101) | |
| I2C | |
| I2C-bus and SMBus compatible | |
| Input | |
| Latch-up performance exceeds 100mA Per JESD 78, class II | |
| Lead Spacing | |
| Lockup-free operation | |
| Mounting Type | |
| Number of Channels | |
| Open-drain I2C I/O | |
| Operating Temperature | |
| Output | |
| Powered-off high-impedance I2C-bus pins | |
| Requires no external pullup resistors on lower-voltage port-A | |
| Supplier Device Package | |
| Supports 400-kHz fast I2C bus operating speeds | |
| Supports arbitration and clock stretching across Repeater | |
| Surface Mount | |
| Two-channel bidirectional buffer | |
| Type | |
| Voltage |
The Texas Instruments TCA9509MRVHR is a versatile 2-bit level-translating buffer and repeater designed for I2C and SMBus applications. This device facilitates voltage-level translation, supporting a wide operating range from 0.9V to 5.5V on side A and 2.7V to 5.5V on side B. It is capable of handling I2C bus speeds up to 400kHz.
Key features include an active-high repeater-enable input, eliminating the need for external pull-up resistors on the lower-voltage port-A. The TCA9509MRVHR offers open-drain I2C I/O and 5.5-V tolerant inputs, supporting mixed-mode signal operation. It ensures lockup-free operation and accommodates both standard and fast-mode I2C devices, supporting multiple controllers. The buffer supports arbitration and clock stretching across the repeater and maintains high impedance on I2C bus pins when powered off.

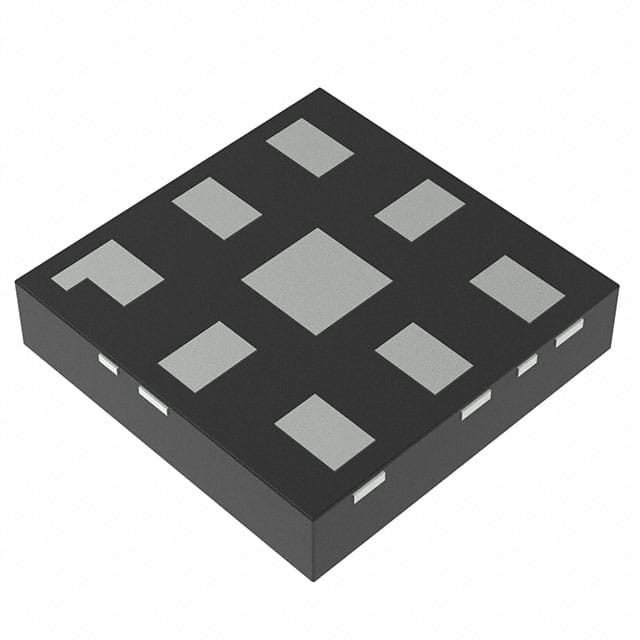

Available in an 8-X2QFN package measuring 1.6mm x 1.6mm, this buffer/repeater is suitable for surface mount applications. It operates within an ambient temperature range of -40°C to 85°C. The device also provides robust ESD protection, exceeding 2000V for the human-body model and 1000V for the charged-device model.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 0.9V to 5.5V on side A and 2.7V to 5.5V on side B.
The maximum operating frequency is 400kHz.
The TCA9509MRVHR is available in an 8-X2QFN package (1.6x1.6mm) and an 8-XFQFN Exposed Pad.
The operating temperature range is -40°C to 85°C.
Yes, the RoHS status is compliant.
The Moisture Sensitivity Level is 1.
