TCA5013ZAHR

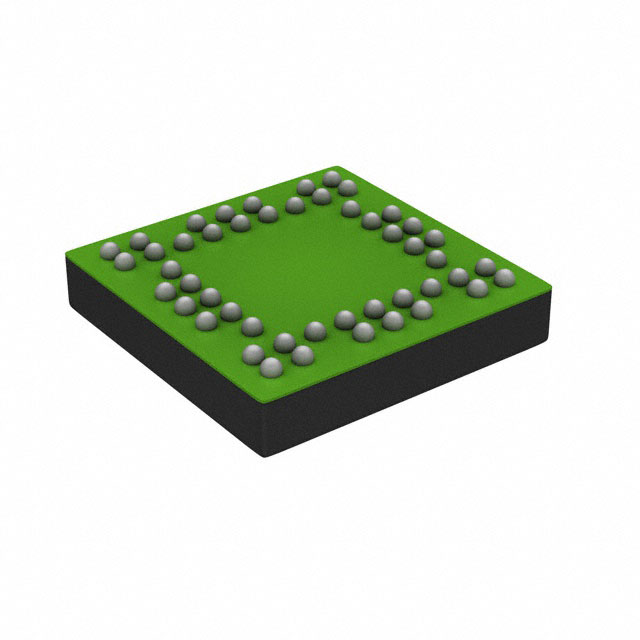

The TCA5013ZAHR from Texas Instruments is a feature-rich smart card interface IC designed to support multiple card types, including 1 user card and 3 secure access module (SAM) cards. It operates within a supply voltage range of 2.7V to 5.5V and supports EMV 4.3, ISO7816-3, and ISO7816-10 standards.

Key electrical features include a maximum smart card frequency of 2.6 MHz and an input clock frequency up to 26 MHz. The IC incorporates an integrated DC-DC boost converter to generate VCC for 5V and 3V card interfaces. It also includes a 4-byte FIFO for storing ATR from ISO7816-10 Type 1 cards and programmable rise/fall time control for IO and clock lines.

For enhanced reliability, the TCA5013ZAHR offers automatic card deactivation in case of short circuits, card pull-out, over-temperature, or power supply faults. It also features IEC61000-4-2 8-kV contact discharge ESD protection on all smart card interface pins. The device is housed in a compact 48-NFBGA (5x5 mm) package, suitable for surface mounting.

This IC is ideal for applications requiring secure and efficient smart card communication, such as payment terminals, access control systems, and identification devices. Its low power mode allows for power saving when inactive.
