TCA355G The Infineon Technologies TCA355G is a proximity switch IC designed for detecting metal objects. It operates within a 5V to 30V supply range.
Mfr Part #:

TCA355G

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TCA355G is a proximity switch IC designed for detecting metal objects. It operates within a 5V to 30V supply range.
✓ Total Stock: 3,259 pcs
$ Price Range: $2.23

TCA355G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,568 pcs
On Request
2568 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
691 pcs
On Request
691 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TCA355G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Inputs
Operating Temperature
Proximity Detection
Supplier Device Package
Supply Voltage
Type
Voltage
View Similar Products (0)

TCA355G Description

Short technical summary and product information.

The Infineon Technologies TCA355G is a bipolar IC designed for inductive proximity switches. It functions by damping a resonant circuit when a metal plate approaches the coil, triggering the output. This device offers lower open-loop current consumption, with a typical value of 0.9 mA.



The TCA355G operates with a supply voltage range of 5V to 30V and has an operating temperature range of -25°C to 85°C. It features a typical switching frequency of 5 kHz and a turn-on delay of 600 ms/µF at 25°C. The typical hysteresis is 0.50V, and the typical threshold voltage is 2.1V.

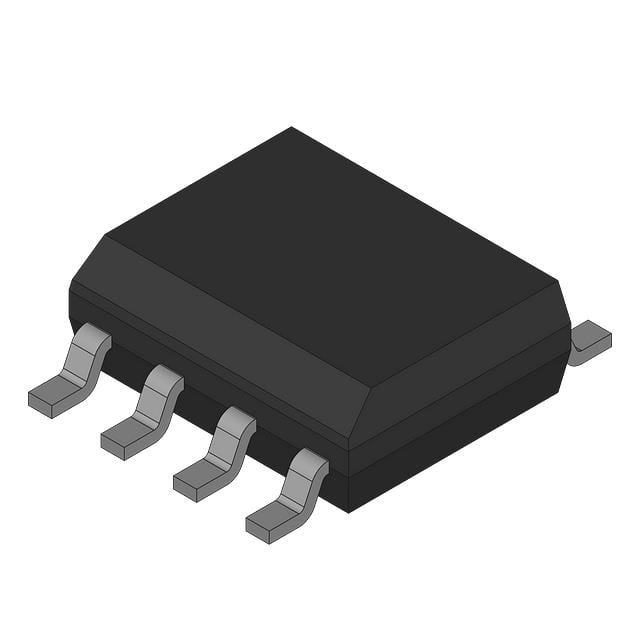

This proximity switch IC is available in the PG-DSO-8-1 package, which is an 8-SOIC (0.154", 3.90mm Width) surface mount type. The outputs are temporarily short-circuit proof. The device is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.



Key features include lower output saturation voltage and higher sensitivity, allowing for larger switching distances and the use of lower-quality coils. The switching hysteresis remains constant across temperature, supply voltage, and switching distance variations.

TCA355G Quick Information

Product Type: Proximity Switch IC
Canonical Name: TCA355G Proximity Switch IC
Subcategory: Sensor

TCA355G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TCA355G Estimated Pricing

Qty Low High
1+ $2.23 $2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

TCA355G Features

  • Low open-loop current consumption.
  • Stable switching hysteresis across conditions.
  • Operates from 5V to 30V supply.
  • Wide -25°C to 85°C temperature range.
  • 8-SOIC surface mount package.

TCA355G Applications

  • Used in inductive proximity switch applications.
  • Suitable for metal detection in automation systems.
  • Ideal for sensing metal objects in industrial environments.
  • Employed in non-contact position sensing devices.

TCA355G FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TCA355G?

The operating voltage range for the TCA355G is 5V to 30V.

What is the operating temperature range for the TCA355G?

The operating temperature range for the TCA355G is -25°C to 85°C.

What package type is the TCA355G supplied in?

The TCA355G is supplied in the PG-DSO-8-1 package, which is an 8-SOIC (0.154", 3.90mm Width) surface mount type.

Is the TCA355G RoHS compliant?

Yes, the TCA355G is RoHS3 Compliant.
