| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,738 pcs
|
3738 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request | |
|
2,170 pcs
|
2170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Current | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Elements | |
| Operating Temperature | |
| Propagation Delay | |
| SVHC Present | |
| Supplier Device Package | |
| Supply Current | |
| Voltage |

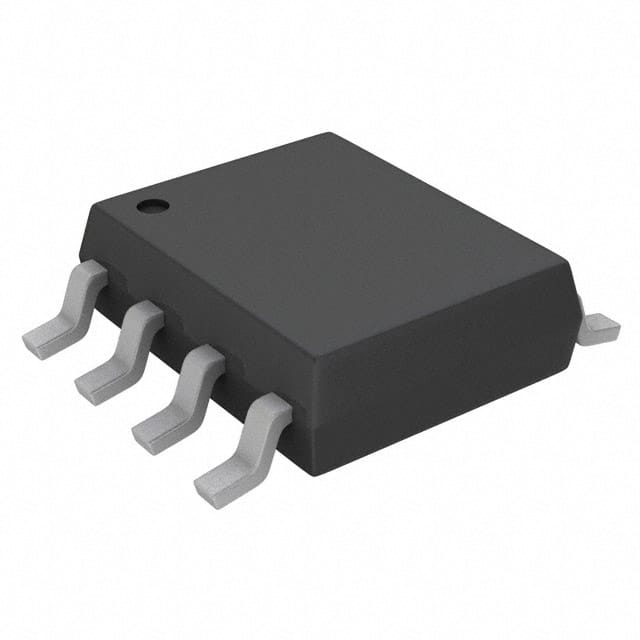

The Toshiba TC7WH241FU(TE12L) is a dual bus buffer IC designed for digital logic applications. It features non-inverting outputs with 3-state capability, allowing for efficient bus control.
This device operates over a wide supply voltage range of 2.0V to 5.5V, making it suitable for various system designs. It offers a typical propagation delay of 3.6 ns at 5V and a low supply current of 2 μA maximum at 25°C, contributing to power efficiency.
The TC7WH241FU(TE12L) is available in an 8-SSOP package and is designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA), ensuring reliable performance in diverse environmental conditions. The buffer provides an output current capability of 8mA for both high and low levels.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.0 V to 5.5 V.
-40°C to 85°C.
8-pin SSOP (also compatible with TSSOP and MSOP).
Typical high-level output current is -8 mA, low-level output current is 8 mA.
Typical propagation delay is 3.6 ns at VCC = 5 V.
Maximum supply current is 2 μA at 25°C.
It is a non-inverting buffer with tri-state outputs.
