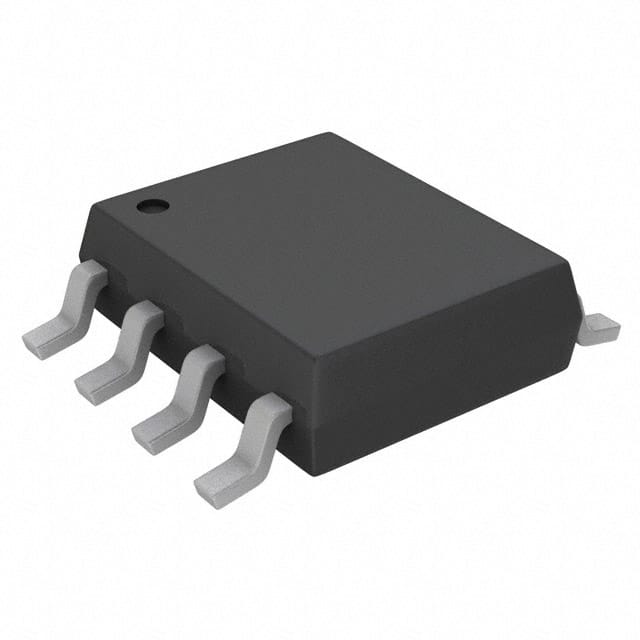

The Toshiba TC7WH14FU(TE12L) is a triple Schmitt trigger inverter IC fabricated with silicon gate CMOS technology, offering high-speed operation while maintaining low power dissipation. It features a wide operating voltage range from 2V to 5.5V and 5.5-V tolerant inputs, making it suitable for interfacing between different voltage systems.
Key electrical characteristics include a maximum quiescent current of 2 µA at 25°C and a maximum propagation delay of 10.6 ns at 5V with a 50pF load. The device provides high noise immunity with input logic levels specified between 0.9V to 1.65V for low and 2.2V to 3.85V for high.
This inverter is available in an 8-SSOP package and is surface-mountable. Its Schmitt trigger function allows it to receive slow input signals, making it useful as a line receiver. The TC7WH14FU(TE12L) is RoHS3 compliant.
Applications include signal conditioning and interfacing in digital circuits where noise immunity and speed are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2V to 5.5V.
The operating temperature range is -40°C to 85°C.
It is available in an 8-SSOP package (also compatible with 8-TSSOP and 8-MSOP).
The maximum quiescent current is 2 µA at 25°C.
It contains three independent inverter circuits.
Yes, it features Schmitt trigger inputs for hysteresis.
