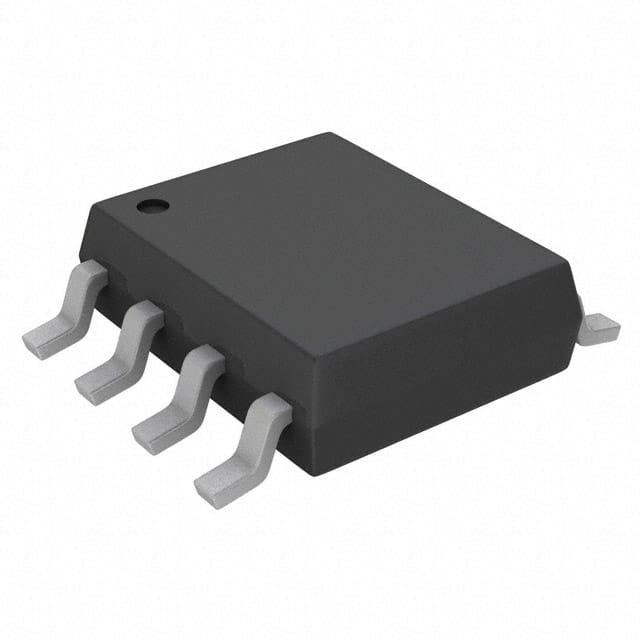

TC7W32FU The Toshiba TC7W32FU(TE12L) is a 2-channel OR Gate IC with a supply voltage range of 2V to 6V. It is available in a surface mount 8-SSOP package.
Mfr Part #:

TC7W32FU

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC7W32FU(TE12L) is a 2-channel OR Gate IC with a supply voltage range of 2V to 6V. It is available in a surface mount 8-SSOP package.
✓ Total Stock: 82,022 pcs

TC7W32FU Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
82,022 pcs
On Request
82022 pcs On Request 1 On Request On Request 0102+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC7W32FU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Output Current
Package / Case
Propagation Delay
Quiescent Current
SVHC Present
Storage Temperature
Supplier Device Package
Supply Voltage
Tape & Reel
View Similar Products (0)

TC7W32FU Description

Short technical summary and product information.

The TC7W32FU(TE12L) from Toshiba is an integrated circuit featuring a 2-channel OR gate logic type. It operates with a supply voltage ranging from 2V to 6V and has a maximum quiescent current of 1 µA. The IC supports input logic levels from 0.5V to 1.8V for low and 1.5V to 4.2V for high.



With a maximum propagation delay of 13ns at 6V and 50pF, this OR gate is suitable for various digital applications. It is designed for surface mounting and comes in an 8-SSOP package, with the case specified as 8-TSSOP, 8-MSOP (0.110, 2.80mm Width).



The operating temperature range for this component is -40°C to 85°C. The product status is listed as Obsolete.

TC7W32FU Quick Information

Product Type: OR Gate IC
Series: 7W
Canonical Name: TC7W32FU(TE12L) OR Gate IC
Subcategory: OR Gate

TC7W32FU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected

TC7W32FU Features

  • Dual 2-input OR gate logic.
  • Wide supply voltage range: 2V to 6V.
  • Low quiescent current: 1 µA maximum.
  • Fast propagation delay: 13ns maximum.
  • Surface mount 8-SSOP package.

TC7W32FU Applications

  • Combine multiple digital input signals.
  • Implement simple OR logic functions.
  • Suitable for battery-powered low-voltage circuits.
  • Operate in industrial temperature environments.

TC7W32FU FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TC7W32FU(TE12L)?

The operating voltage range is 2V to 6V.

What is the maximum propagation delay of the TC7W32FU(TE12L)?

The maximum propagation delay is 13ns at 6V and 50pF.

What is the operating temperature range for this OR Gate IC?

The operating temperature range is -40°C to 85°C.

What package type is the TC7W32FU(TE12L supplied in?

It is supplied in an 8-SSOP package, specified as 8-TSSOP, 8-MSOP (0.110, 2.80mm Width).
