TC7W02FTE12L Description

Short technical summary and product information.

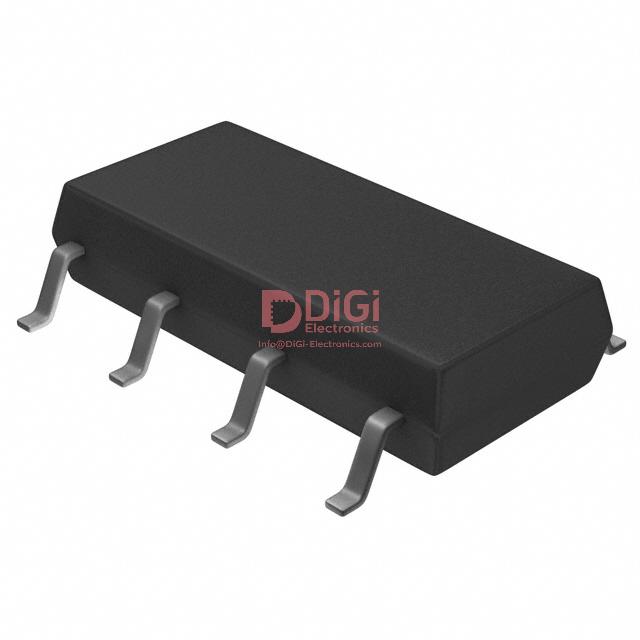

The Toshiba TC7W02FTE12L is a NOR Gate logic integrated circuit designed for digital applications. It features two independent NOR gates, each with two inputs.



This IC operates over a wide supply voltage range of 2V to 6V, making it versatile for various power systems. It exhibits a maximum propagation delay of 13ns at 6V with a 50pF load. The input logic levels are defined from 0.5V to 1.8V for low and 1.5V to 4.2V for high. The device consumes a low quiescent current of 1µA (max).



Designed for surface mounting, the TC7W02FTE12L comes in an 8-SOIC package. Its operating temperature range is from -40°C to 85°C, suitable for demanding environments. The product status is listed as Obsolete.



Key specifications include a 2-channel configuration, 2-input gates, and a 5.2mA output current for both high and low states.

TC7W02FTE12L Quick Information

Product Type: Logic Gate
Series: TC7W02
Canonical Name: TC7W02FTE12L Toshiba Semiconductor and Storage NOR Gate IC 2 Channel 8-SOP
Subcategory: Gates and Inverters

TC7W02FTE12L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC7W02FTE12L Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC7W02FTE12L Features

  • Dual 2-input NOR gate IC.
  • Wide 2V to 6V supply voltage range.
  • Low 1µA quiescent current.
  • Surface mount 8-SOIC package.
  • Operates from -40°C to 85°C.

TC7W02FTE12L Applications

  • General purpose digital logic circuits.
  • Battery-powered portable devices.
  • Signal gating and inversion applications.
  • Low-voltage microprocessor interface.

TC7W02FTE12L FAQs

3 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the TC7W02FTE12L?

The supply voltage range for the TC7W02FTE12L is 2V to 6V.

What is the operating temperature of the TC7W02FTE12L?

The TC7W02FTE12L operates in a temperature range of -40°C to 85°C.

What package type is the TC7W02FTE12L supplied in?

The TC7W02FTE12L is supplied in an 8-SOIC package.
