TC7USB40MU,LF(S2E The Toshiba TC7USB40MU,LF(S2E is a dual SPDT USB switch IC designed for USB applications. It features a 1.5GHz bandwidth and operates from a 2.3V to 4.3V supply.
Mfr Part #:

TC7USB40MU,LF(S2E

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC7USB40MU,LF(S2E is a dual SPDT USB switch IC designed for USB applications. It features a 1.5GHz bandwidth and operates from a 2.3V to 4.3V supply.
✓ Total Stock: 2,000 pcs
$ Price Range: $1.20

TC7USB40MU,LF(S2E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC7USB40MU,LF(S2E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Switch Circuit
Voltage
View Similar Products (0)

TC7USB40MU,LF(S2E Description

Short technical summary and product information.

The Toshiba TC7USB40MU,LF(S2E is a specialized analog switch IC designed for USB interface applications. It functions as a dual 2:1 switch with an SPDT circuit configuration, enabling efficient signal routing.



Key electrical specifications include an on-state resistance of 14 Ohms and a wide operating voltage range of 2.3V to 4.3V. The device supports USB 2.0 and offers a bandwidth of 1.5GHz, making it suitable for high-speed data transfer.

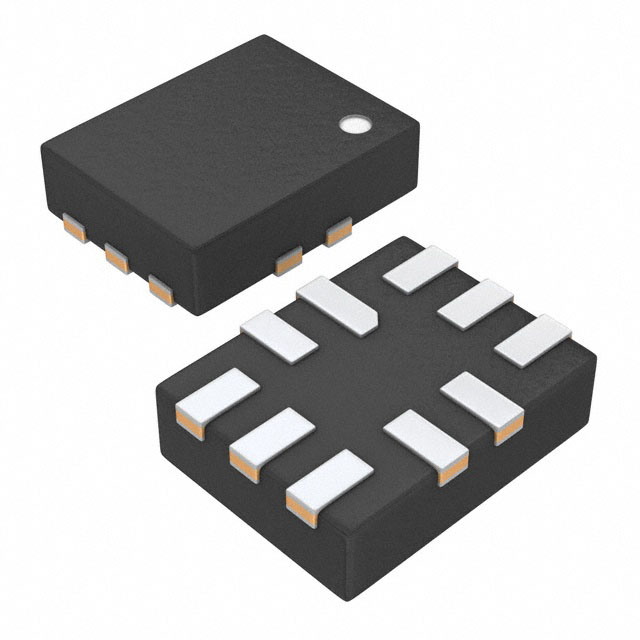

This component is designed for surface mounting, utilizing a compact 10-UFQFN package measuring 1.8x1.4mm. The operating temperature range is -40°C to 85°C (TA), ensuring reliable performance in various environmental conditions. The TC7USB40MU,LF(S2E is ideal for applications requiring flexible USB signal management.

TC7USB40MU,LF(S2E Quick Information

Product Type: USB Switch IC
Canonical Name: TC7USB40MU,LF(S2E USB Switch IC
Subcategory: Special Purpose

TC7USB40MU,LF(S2E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC7USB40MU,LF(S2E Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC7USB40MU,LF(S2E Features

  • Dual SPDT USB switch IC.
  • Supports USB 2.0 interface.
  • 14 Ohm maximum on-state resistance.
  • Operates from 2.3V to 4.3V.
  • Surface mount 10-UFQFN package.

TC7USB40MU,LF(S2E Applications

  • Ideal for USB signal routing.
  • Suitable for embedded systems.
  • Used in portable electronics.
  • Facilitates USB multiplexing.

TC7USB40MU,LF(S2E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the on-state resistance of the TC7USB40MU,LF(S2E?

The maximum on-state resistance is 14 Ohms.

What is the operating voltage range for the TC7USB40MU,LF(S2E?

The operating voltage range is 2.3V to 4.3V.

What type of package is the TC7USB40MU,LF(S2E in?

The TC7USB40MU,LF(S2E is available in a 10-UFQFN package.

What is the operating temperature range for this USB switch IC?

The operating temperature range is -40°C to 85°C (TA).

What USB standard does the TC7USB40MU,LF(S2E support?

The TC7USB40MU,LF(S2E supports USB 2.0.
