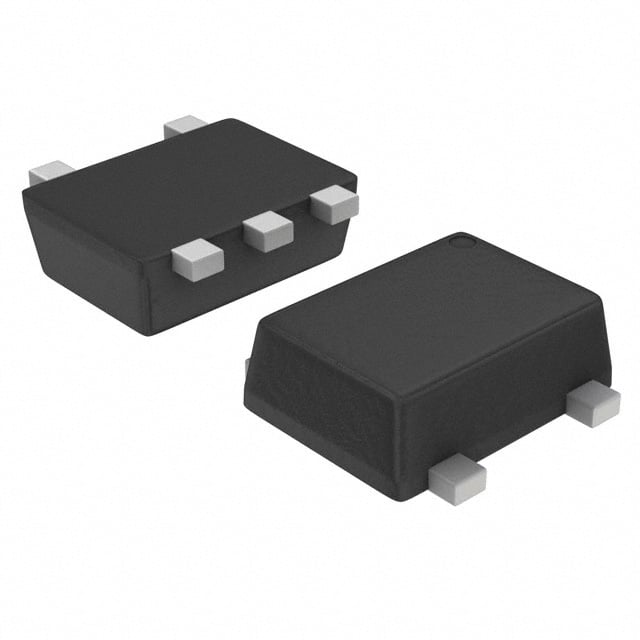

TC7SZU04FE The Toshiba TC7SZU04FE is a single-channel inverter IC designed for logic applications. It operates within a wide voltage range and features a compact surface mount package.
Mfr Part #:

TC7SZU04FE

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC7SZU04FE is a single-channel inverter IC designed for logic applications. It operates within a wide voltage range and features a compact surface mount package.
✓ Total Stock: 90,000 pcs

TC7SZU04FE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
90,000 pcs
On Request
90000 pcs On Request 1 On Request On Request 1647+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC7SZU04FE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Industrial Grade
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Package / Case
Propagation Delay
Quiescent Current
SVHC Present
Storage Temperature
Supply Voltage
Tape & Reel
View Similar Products (0)

TC7SZU04FE Description

Short technical summary and product information.

The TC7SZU04FE from Toshiba Semiconductor and Storage is a single-channel inverter integrated circuit. It is designed to operate with a supply voltage ranging from 1.65V to 5.5V, making it suitable for various low-voltage applications. The IC has a maximum quiescent current of 1µA and offers output currents of 32mA high and 32mA low under typical load conditions.



With a maximum propagation delay of 5ns at 5V and 50pF, the TC7SZU04FE provides efficient switching performance. It is specified for operation across a temperature range of -40°C to 85°C. The component is available in a surface mount ESV package, supplied in tape and reel or cut tape formats.



This inverter IC is suitable for digital logic circuits requiring signal inversion. Its specifications make it a versatile component for embedded systems and general-purpose logic designs where space and power efficiency are important considerations.

TC7SZU04FE Quick Information

Product Type: Inverter IC
Series: TC7SZU
Canonical Name: Toshiba TC7SZU04FE Inverter IC
Subcategory: Inverters

TC7SZU04FE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1
REACH Status: REACH Unaffected
Lead Free: Yes

TC7SZU04FE Features

  • Single-channel inverter logic IC.
  • Wide supply voltage from 1.65V to 5.5V.
  • Fast propagation delay of 5ns.
  • Low quiescent current of 1µA.
  • Surface mount ESV package.

TC7SZU04FE Applications

  • Digital logic signal inversion.
  • Embedded system designs.
  • Low-voltage electronic circuits.
  • General purpose logic applications.

TC7SZU04FE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the TC7SZU04FE?

The supply voltage range is 1.65V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the TC7SZU04FE available in?

It is available in a surface-mount ESV package.

What is the maximum propagation delay?

The maximum propagation delay is 5ns at 5V with 50pF load.

What is the output current capability?

The output current is 32mA for both high and low states.
