| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38,975 pcs
|
38975 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Logic Level | |
| Input Voltage | |
| Logic Type | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Voltage |
The Toshiba TC7SH04FU,LJ(CT is a silicon monolithic CMOS digital integrated circuit functioning as a single-channel inverter. It is designed for a wide operating voltage range from 2.0V to 5.5V, making it versatile for various applications.
Key electrical characteristics include a maximum supply current of 2.0 µA at 25°C and a high noise immunity. The device boasts a high-speed operation with a typical propagation delay of 3.8 ns at 5.0V and 15 pF, and a maximum of 7.5 ns at 5V and 50pF. It also features 5.5V tolerant inputs.

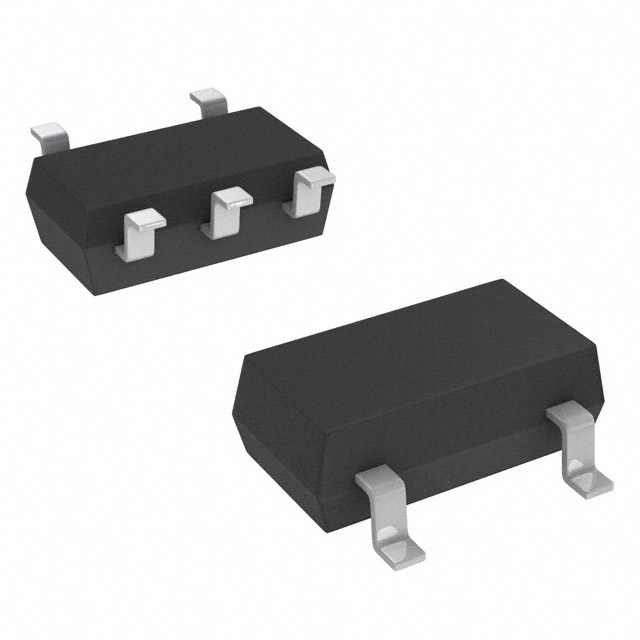

This inverter is available in a compact 5-SSOP, SC-70-5, or SOT-353 surface mount package. The operating temperature range is specified from -40°C to 85°C, with some variants supporting up to 125°C. The device is AEC-Q100 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.0V to 5.5V.
Typical propagation delay is 3.8ns at VCC=5.0V and CL=15pF; maximum is 7.5ns at VCC=5.0V and CL=50pF.
The output current is 8mA.
It contains one inverter circuit.
The device is available in SC-70-5, SOT-353, and 5-SSOP packages, all surface mount.
The operating temperature range is -40°C to 125°C.
