| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
723,200 pcs
|
723200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Output Current | |
| Propagation Delay | |
| Quiescent Current | |
| Supply Voltage |

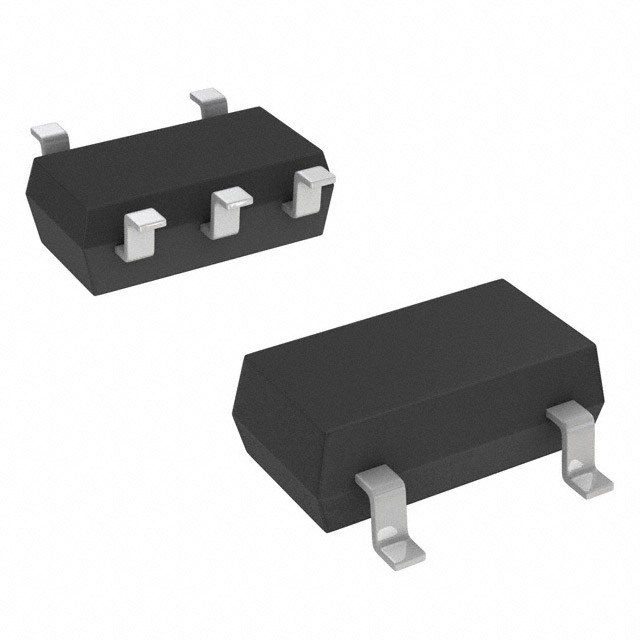

The Toshiba TC7SET04FU,LJ is a single-channel inverter integrated circuit. It operates within a supply voltage range of 4.5V to 5.5V and features a maximum propagation delay of 10.5ns at 5V with a 50pF load capacitance.
This component is suitable for a wide operating temperature range of -40°C to 85°C. It has a quiescent current of 2 µA maximum and an output current capability of 8mA.
The TC7SET04FU,LJ is available in a 5-SSOP package, designed for surface mounting. The package case is specified as 5-TSSOP, SC-70-5, SOT-353. It is supplied in Tape & Reel (TR) or Cut Tape (CT) formats.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V.
The operating temperature range is -40°C to 85°C.
It comes in a 5-SSOP package, also known as 5-TSSOP, SC-70-5, or SOT-353.
The maximum quiescent current is 2µA.
The output current is 8mA.
The maximum propagation delay is 10.5ns at 5V with a 50pF load.
The low-level input voltage is 0.8V and the high-level input voltage is 2V.
