| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,657 pcs
|
51657 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 3dB Bandwidth | |
| Applications | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Switch Circuit | |
| Voltage |
The Toshiba TC7PCI3212MT,LF is a specialized analog switch IC designed for PCI Express applications. This component functions as a multiplexer/demultiplexer, offering a 2:1 switch circuit configuration across 4 channels.
Key electrical specifications include an operating voltage range of 3V to 3.6V and a maximum on-state resistance of 13.5 Ohms. The device boasts a -3dB bandwidth of 11.5GHz, making it suitable for high-speed data transmission.

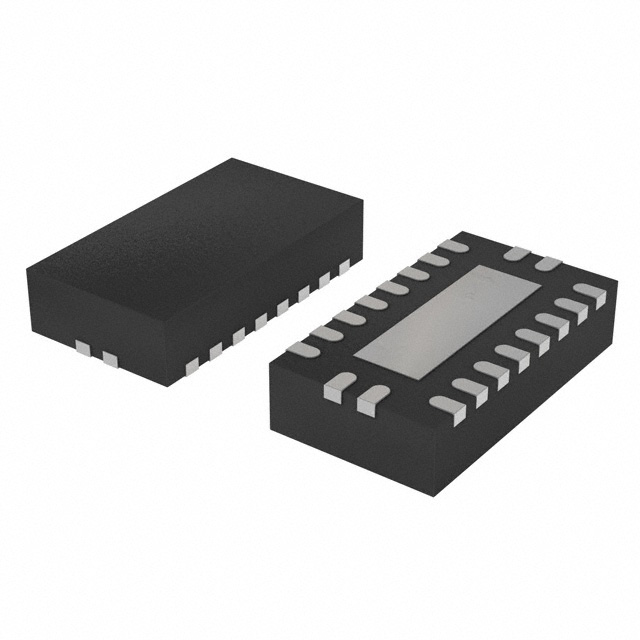

Designed for surface mounting, the TC7PCI3212MT,LF comes in a 20-UFQFN exposed pad package, with the supplier device package specified as 20-TQFN (2.5x4.5). The operating temperature range is -40°C to 85°C (TA).
This IC is categorized under Analog Switches - Special Purpose and is RoHS3 Compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 3.6V.
The maximum on-state resistance is 13.5 Ohms.
The -3dB bandwidth is 11.5GHz.
This IC has 4 channels.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 20-UFQFN exposed pad package.
Yes, it is RoHS3 Compliant.
