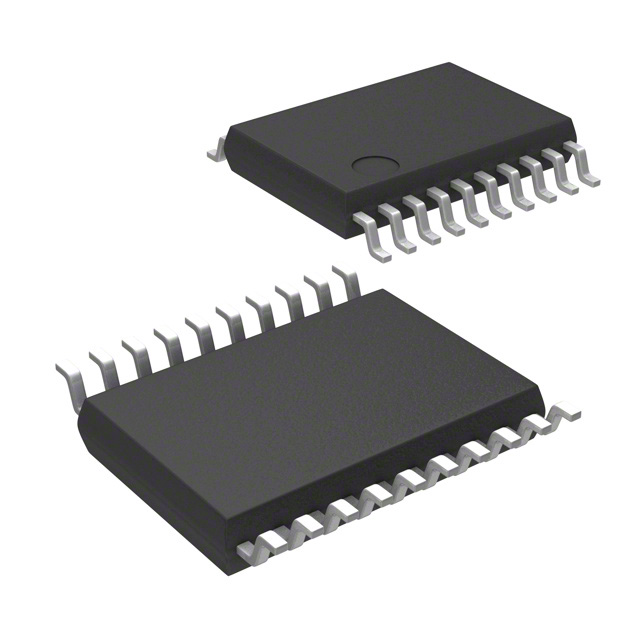

TC7MBL3245CFK The Toshiba TC7MBL3245CFK(EL) is an 8 x 1:1 bus switch IC. It operates with a single supply voltage ranging from 1.65V to 3.6V.
Mfr Part #:

TC7MBL3245CFK

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC7MBL3245CFK(EL) is an 8 x 1:1 bus switch IC. It operates with a single supply voltage ranging from 1.65V to 3.6V.
✓ Total Stock: 95,000 pcs

TC7MBL3245CFK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
95,000 pcs
On Request
95000 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC7MBL3245CFK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Storage Temperature
Type
Voltage Supply
Voltage Supply Source
View Similar Products (0)

TC7MBL3245CFK Description

Short technical summary and product information.

The TC7MBL3245CFK(EL) from Toshiba is a high-performance bus switch designed for various logic applications. This IC features an 8 x 1:1 switching configuration, allowing for efficient signal routing.



It operates with a single supply voltage, supporting a range from 1.65V to 3.6V, making it suitable for a wide array of electronic designs. The device is specified for operation across a temperature range of -40°C to 85°C, ensuring reliability in diverse environmental conditions.



The bus switch is available in a compact 20-VSSOP package, designed for surface mount installation. This packaging choice facilitates integration into space-constrained PCB layouts. The TC7MBL3245CFK(EL) is part of the TC7MB series, known for its logic switching capabilities.

TC7MBL3245CFK Quick Information

Product Type: Bus Switch
Series: TC7MB
Canonical Name: TC7MBL3245CFK(EL) Bus Switch
Subcategory: Logic - Signal Switches, Multiplexers, Decoders

TC7MBL3245CFK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC7MBL3245CFK Features

  • Single supply voltage from 1.65V to 3.6V.
  • 8-bit bus switch with 8 x 1:1 circuit.
  • Surface mount 20-VSSOP package.
  • Operating temperature range -40°C to 85°C.
  • RoHS3 compliant.

TC7MBL3245CFK Applications

  • Suitable for low-voltage signal routing.
  • Ideal for bus isolation in digital systems.
  • Used in portable and battery-powered devices.
  • Applicable in industrial control systems.

TC7MBL3245CFK FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TC7MBL3245CFK?

1.65V to 3.6V.

What is the package type of the TC7MBL3245CFK?

20-VSSOP.

What is the operating temperature range?

-40°C to 85°C.

What is the circuit configuration?

8 x 1:1.

What is the mounting type?

Surface Mount.

What is the supply source?

Single.
