Mfr Part #:

TC78B009FTG,EL

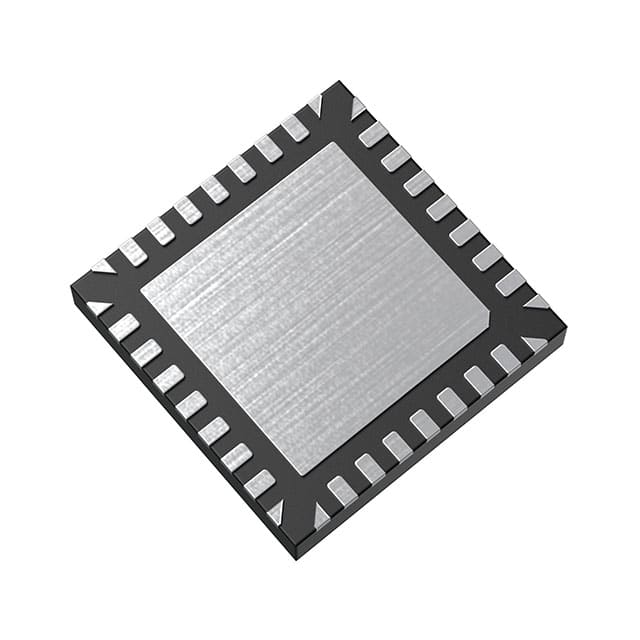

Name: TC78B009FTG,EL
Brand: Toshiba
SKU: TC78B009FTG,EL

Mfr Name: Toshiba

Description:

30V, 3-PHASE BRUSHLESS DC (BLDC)

Stock on Request

TC78B009FTG,EL Description

Short technical summary and product information.

30V, 3-PHASE BRUSHLESS DC (BLDC)

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Motor Drivers, Controllers
Manufacturer Name	Toshiba
Applications	General Purpose
Current	240mA
Function	Controller - Commutation, Direction Management
Interface	I²C, PWM
Motor Type	Multiphase
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 105°C (TA)
Output Configuration	Pre-Driver - High Side/Low Side
Supplier Device Package	36-WQFN (5x5)
Technology	NMOS
Voltage	5.5V ~ 27V
