TC75W56FU The Toshiba TC75W56FU,LF is a general purpose comparator with a push-pull output. It operates with a supply voltage range of 1.8V to 7V.
Mfr Part #:

TC75W56FU

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC75W56FU,LF is a general purpose comparator with a push-pull output. It operates with a supply voltage range of 1.8V to 7V.
✓ Total Stock: 389,600 pcs
$ Price Range: $1.32

TC75W56FU Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
361,600 pcs
On Request
361600 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
28,000 pcs
On Request
28000 pcs On Request 1 On Request On Request 1523+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC75W56FU Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current - Quiescent (Max)
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay
SVHC Present
Supplier Device Package
Type
View Similar Products (0)

TC75W56FU Description

Short technical summary and product information.

The Toshiba TC75W56FU,LF is a general purpose comparator designed for various applications. It features a push-pull output and operates with a wide supply voltage range, supporting single or dual supplies from 1.8V to 7V or ±0.9V to ±3.5V.



Key electrical characteristics include a maximum input offset voltage of 7mV at 5V, a maximum input bias current of 1pA at 5V, and a typical output current of 25mA. The quiescent current is a maximum of 40µA, and the propagation delay is a maximum of 680ns.

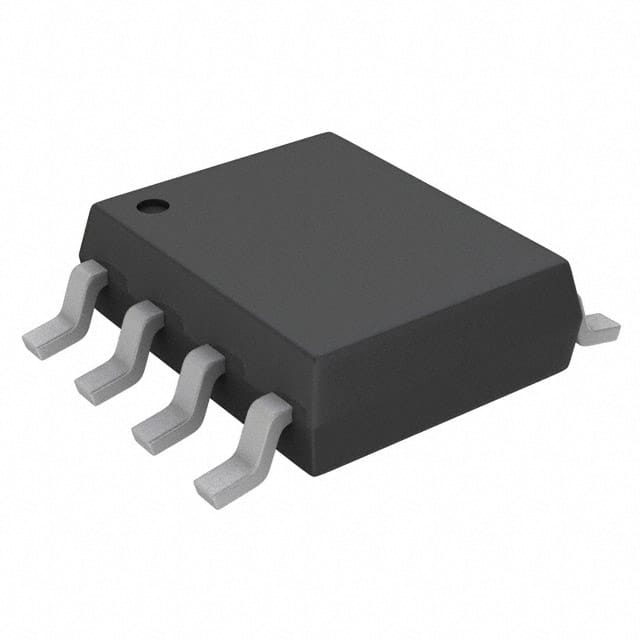

This component is housed in an 8-SSOP package and is designed for surface mounting. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions. The package is available in Tape & Reel (TR) or Cut Tape (CT) formats.

TC75W56FU Quick Information

Product Type: Comparator
Canonical Name: Toshiba TC75W56FU General Purpose Comparator
Subcategory: Linear - Comparators

TC75W56FU Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC75W56FU Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC75W56FU Features

  • General purpose comparator with push-pull output.
  • Wide supply voltage range: 1.8V to 7V.
  • Low quiescent current: 40µA maximum.
  • Surface mount 8-SSOP package.
  • Operating temperature: -40°C to 85°C.

TC75W56FU Applications

  • Suitable for general-purpose signal comparison.
  • Ideal for low-power electronic circuits.
  • Used in applications requiring wide voltage swings.
  • Compact surface-mount integration.

TC75W56FU FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the TC75W56FU?

The TC75W56FU operates from a single supply of 1.8V to 7V or dual supplies of ±0.9V to ±3.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package options are available for the TC75W56FU?

The TC75W56FU is available in 8-TSSOP and 8-MSOP packages with a width of 2.80mm, and the supplier device package is 8-SSOP.

What is the propagation delay of this comparator?

The maximum propagation delay is 680ns.

What is the quiescent current consumption?

The maximum quiescent current is 40µA.

What is the output current capability?

The typical output current is 25mA.
