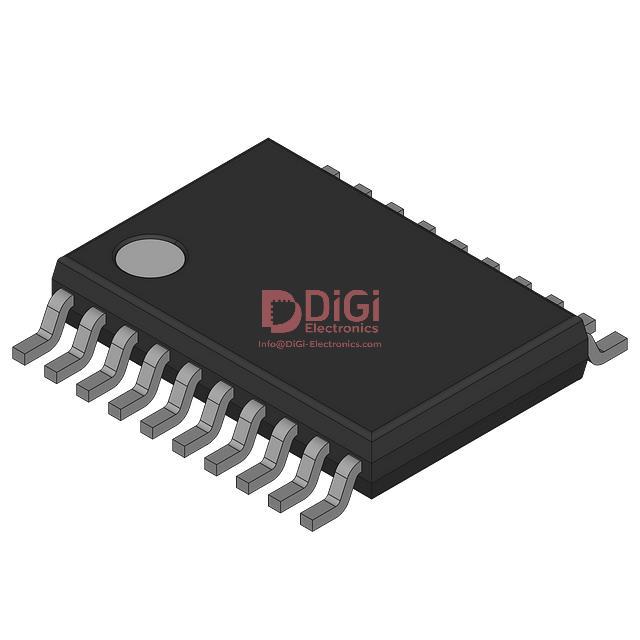

TC74LCX244FT(EL The Toshiba TC74LCX244FT(EL is an octal bus buffer designed for 3.3V systems. It offers high-speed operation with low power dissipation and 5V tolerant inputs/outputs.
Mfr Part #:

TC74LCX244FT(EL

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC74LCX244FT(EL is an octal bus buffer designed for 3.3V systems. It offers high-speed operation with low power dissipation and 5V tolerant inputs/outputs.
✓ Total Stock: 6,000 pcs

TC74LCX244FT(EL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 0542+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC74LCX244FT(EL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Output Voltage
Package / Case
Propagation Delay
Storage Temperature
Weight
View Similar Products (0)

TC74LCX244FT(EL Description

Short technical summary and product information.

The Toshiba TC74LCX244FT(EL is a high-performance CMOS octal bus buffer designed for low-voltage (1.65 to 3.6 V) applications. It achieves high-speed operation with a typical propagation delay of 6.5 ns at 3.0 to 3.6 V supply. The device features 5-V tolerant inputs and outputs, making it suitable for interfacing with 5 V supply environments.



This non-inverting, 3-state buffer has two active-low output enables and is designed for use with 3-state memory address drivers. All inputs are equipped with protection circuits against static discharge. The TC74LCX244FT(EL offers an output current of 24 mA minimum at 3.0 V.



Available in a 20-TSSOP surface mount package, this buffer is pin and function compatible with the 74 series 244 type. It operates over a temperature range of -40°C to 125°C.

TC74LCX244FT(EL Quick Information

Product Type: Octal Bus Buffer
Series: 74LCX
Canonical Name: TC74LCX244FT(EL Octal Bus Buffer
Subcategory: Octal Bus Buffer

TC74LCX244FT(EL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC74LCX244FT(EL Features

  • Low-voltage operation from 1.65 to 3.6 V.
  • High-speed operation with 6.5 ns max tpd.
  • 24 mA minimum output current at 3.0 V.
  • 5-V tolerant inputs and outputs.
  • Available in 20-TSSOP surface mount package.

TC74LCX244FT(EL Applications

  • Used for bus driving in low-voltage logic systems.
  • Suitable for memory address buffering.
  • Ideal for interfacing between different voltage domains.
  • Can drive high-capacitance loads.
  • Used in general-purpose logic buffering.

TC74LCX244FT(EL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TC74LCX244FT(EL?

The operating voltage range is 1.65 to 3.6 V.

What is the maximum propagation delay?

The maximum propagation delay is 6.5 ns at 3.0 to 3.6 V.

What is the output current capability?

The minimum output current is 24 mA at 3.0 V.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What package type is the TC74LCX244FT(EL available in?

It is available in a 20-TSSOP surface mount package.
