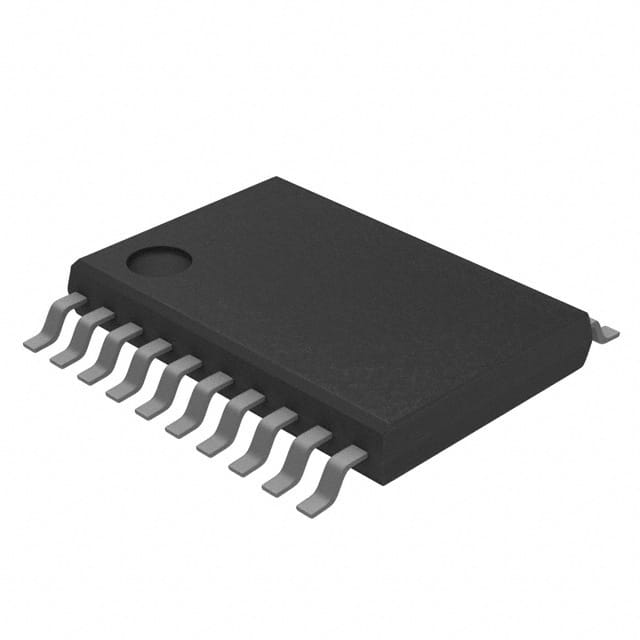

TC74LCX244FT(EL) The Toshiba TC74LCX244FT(EL) is a high-performance CMOS octal bus buffer designed for low-voltage systems. It operates from 1.65V to 3.6V and offers 24mA output current.
Mfr Part #:

TC74LCX244FT(EL)

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC74LCX244FT(EL) is a high-performance CMOS octal bus buffer designed for low-voltage systems. It operates from 1.65V to 3.6V and offers 24mA output current.
✓ Total Stock: 6 pcs
$ Price Range: $1.20

TC74LCX244FT(EL) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC74LCX244FT(EL) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Logic Type
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Current
Propagation Delay
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

TC74LCX244FT(EL) Description

Short technical summary and product information.

The TC74LCX244FT(EL) from Toshiba is a high-performance, low-voltage CMOS octal bus buffer. It is designed for use in 3.3V systems and achieves high-speed operation while maintaining low power dissipation. This non-inverting, 3-state buffer features two active-low output enables and is suitable for interfacing with 5V supply environments for both inputs and outputs.



Key electrical specifications include an operating voltage range of 1.65V to 3.6V and an output current of 24mA. The device operates within a temperature range of -40°C to 85°C. It is available in a 20-TSSOP surface-mount package.



All inputs are equipped with protection circuits against static discharge, and the device provides power-down protection on all inputs and outputs. The TC74LCX244FT(EL) is pin and function compatible with the 74 series 244 type.

TC74LCX244FT(EL) Quick Information

Product Type: Buffer, Driver, Receiver, Transceiver
Series: 74LCX
Canonical Name: TC74LCX244FT(EL) Octal Bus Buffer
Subcategory: Octal Bus Buffer

TC74LCX244FT(EL) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC74LCX244FT(EL) Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC74LCX244FT(EL) Features

  • Low-voltage operation from 1.65V to 3.6V.
  • High-speed operation with 24mA output current.
  • Operates from -40°C to 85°C.
  • Surface mountable in a 20-TSSOP package.
  • Features static discharge protection on inputs.

TC74LCX244FT(EL) Applications

  • Ideal for 3.3V system interfacing.
  • Suitable for 5V tolerant applications.
  • Used in bus buffering applications.
  • Designed for high-speed digital circuits.

TC74LCX244FT(EL) FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TC74LCX244FT(EL)?

1.65V to 3.6V.

What is the operating temperature range?

-40°C to 85°C.

What package is this device available in?

20-TSSOP surface mount (4.40mm width).

What is the logic type?

Buffer, Non-Inverting.

What is the typical output current?

12 mA typical (24 mA minimum at VCC=3.0V).

What is the propagation delay?

6.5 ns maximum at VCC=3.0V to 3.6V.
