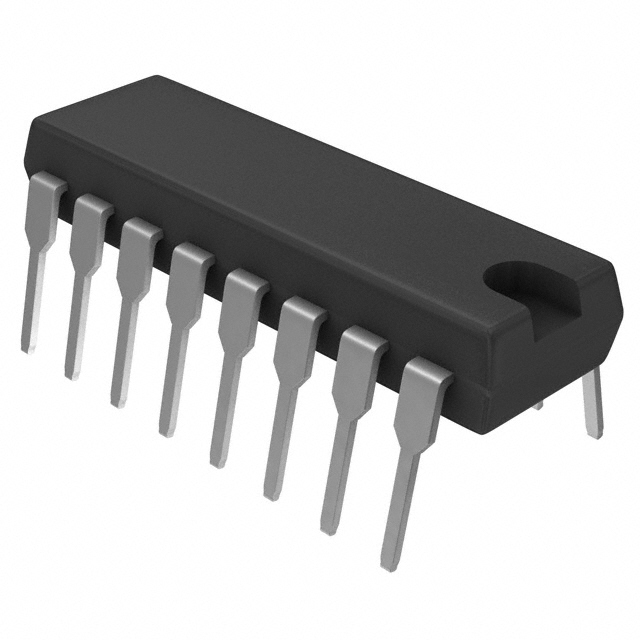

TC74HC175AP The Toshiba TC74HC175AP is a D-Type Flip Flop with a 63 MHz clock frequency and a supply voltage range of 2V to 6V. It is designed for through-hole mounting in a 16-DIP package.
Mfr Part #:

TC74HC175AP

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TC74HC175AP is a D-Type Flip Flop with a 63 MHz clock frequency and a supply voltage range of 2V to 6V. It is designed for through-hole mounting in a 16-DIP package.
✓ Total Stock: 403 pcs
$ Price Range: $0.86

TC74HC175AP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
390 pcs
On Request
390 pcs On Request 1 On Request On Request 0247+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
13 pcs
On Request
13 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC74HC175AP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Function
Input Capacitance
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Supplier Package
Trigger Type
Type
Voltage
View Similar Products (0)

TC74HC175AP Description

Short technical summary and product information.

The Toshiba TC74HC175AP is a single D-Type flip flop integrated circuit. It features a clock frequency of up to 63 MHz and operates within a supply voltage range of 2V to 6V. The device has a maximum propagation delay of 24ns at 6V and 50pF.



This flip flop is designed for through-hole mounting and comes in a 16-DIP package. It has a wide operating temperature range of -40°C to 85°C (TA). The input capacitance is 5 pF, and it consumes a quiescent current of 4 µA. The TC74HC175AP is a 4-bit element flip flop with a reset function and positive edge triggering.



Its complementary output type and robust operating parameters make it suitable for various digital logic applications requiring reliable state storage and data sequencing.

TC74HC175AP Quick Information

Product Type: Flip Flop
Series: HC
Canonical Name: TC74HC175AP D-Type Flip Flop
Subcategory: D-Type

TC74HC175AP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC74HC175AP Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC74HC175AP Features

  • D-Type Flip Flop with reset function.
  • Operates at 63 MHz clock frequency.
  • Wide supply voltage range of 2V to 6V.
  • Through-hole mounting in 16-DIP package.
  • Extended operating temperature range.

TC74HC175AP Applications

  • Digital state storage applications.
  • Data sequencing and synchronization.
  • Control logic circuits.
  • Timing signal generation.

TC74HC175AP FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the TC74HC175AP?

The supply voltage range is 2V to 6V.

What is the maximum clock frequency?

The maximum clock frequency is 63 MHz.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package does the TC74HC175AP come in?

It comes in a 16-DIP (0.300", 7.62mm) through-hole package.

What is the logic type and function?

It is a single 4-bit D-type flip-flop with reset and complementary outputs.

What is the propagation delay?

The maximum propagation delay is 24ns at 6V with 50pF load.
