Mfr Part #:

TC647VOA

Mfr Name: MICROCHPHS

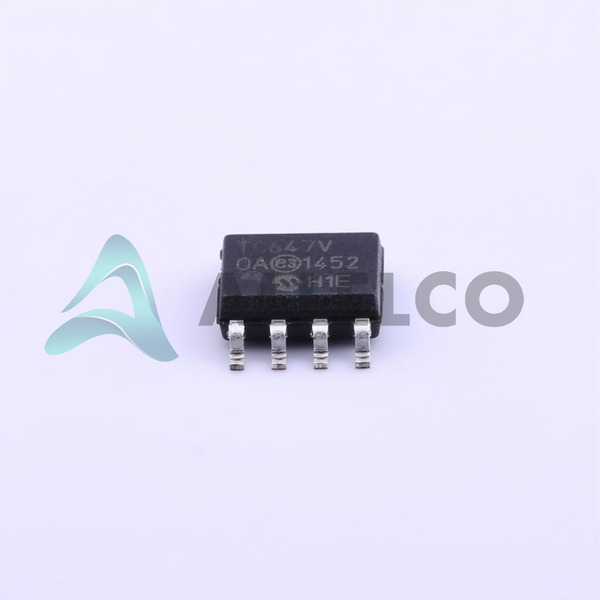

The Microchip Technology TC647VOA is an 8-pin fan speed controller utilizing PWM for temperature-proportional control. It operates within a 3.0V to 5.5V supply range and a -40°C to +125°C temperature range.

✓ Total Stock: 3,637 pcs

TC647VOA Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,637 pcs On Request	3637 pcs	On Request	1	On Request	On Request	18+	On Request	On Request

TC647VOA Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	MICROCHPHS
Halogen Free	No
Number of Pins	8-Pin
Operating Temperature Range	-40°C to +125°C
Package / Case	MSOP / SOIC / PDIP
SVHC Present	Not Present
Supply Voltage	3.0V to 5.5V

View Similar Products (0)

TC647VOA Description

Short technical summary and product information.

The TC647VOA from Microchip Technology is a switch-mode fan speed controller designed for brushless DC fans. It employs pulse width modulation (PWM) to achieve temperature-proportional speed control, contributing to acoustic management and extended fan life. The device supports a wide supply voltage range of 3.0V to 5.5V, with the fan voltage being independent of the TC647 supply, allowing compatibility with any fan voltage.

Key features include FanSense™ technology for fault detection against fan failure and system testing aid, and a shutdown mode for energy-efficient systems. It supports low-cost NTC/PTC thermistors for temperature sensing. The TC647VOA is available in space-saving 8-pin MSOP, SOIC, and PDIP packages, and operates across an industrial temperature range of -40°C to +125°C.

This controller is suitable for applications such as power supplies, personal computers, file servers, telecom equipment, UPSs, and power amplifiers, offering general-purpose fan speed control.

TC647VOA Quick Information

Product Type: Fan Speed Controller

Series: TC647

Canonical Name: TC647 Fan Speed Controller

Subcategory: Power Management (PMIC)

TC647VOA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

TC647VOA Features

Temperature proportional fan speed control.
Efficient PWM fan drive.
3.0V to 5.5V supply range.
FanSense™ fault detection technology.
Available in 8-pin MSOP, SOIC, PDIP.

TC647VOA Applications

Power supplies and UPSs.
Personal computers and servers.
Telecom equipment.
Power amplifiers.
General purpose fan control.

TC647VOA FAQs

6 frequently asked questions generated from this part’s specifications.

What is the supply voltage range for the TC647VOA?

The supply voltage range is 3.0V to 5.5V.

What is the operating temperature range for the TC647VOA?

The operating temperature range is -40°C to +125°C.

What package types are available for the TC647VOA?

The TC647VOA is available in MSOP, SOIC, and PDIP packages.

What is the RoHS status of the TC647VOA?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the TC647VOA?

The Moisture Sensitivity Level is 1 Unlimited.

What is the REACH status for the TC647VOA?

The REACH status is REACH Unaffected.
