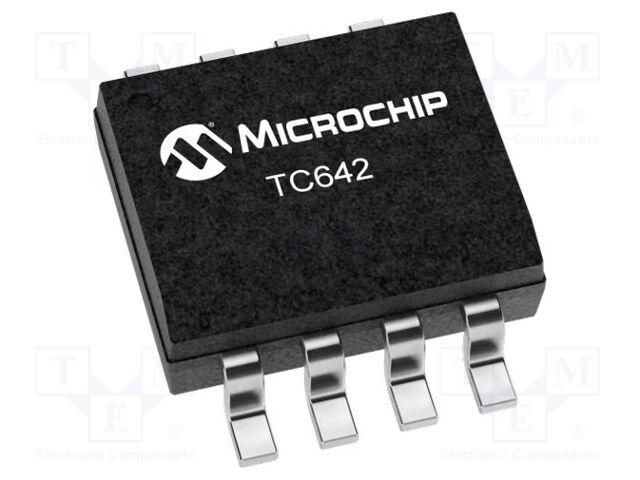

The TC642VOA713 by Microchip Technology is a switch-mode fan speed controller for brushless DC fans, utilizing pulse width modulation (PWM) for temperature-proportional speed control. This feature contributes to acoustic management and increases fan lifespan.
The device supports a wide supply voltage range of 3.0V to 5.5V, with the fan voltage being independent of the TC642 supply voltage, allowing compatibility with any fan voltage. It incorporates Microchip's FanSense™ technology for fault detection, protecting against fan failure and aiding system testing. A shutdown mode is available for energy-efficient "green" systems.
This controller is suitable for applications such as power supplies, personal computers, file servers, and telecom equipment. It supports low-cost NTC/PTC thermistors for temperature sensing and is available in a space-saving 8-pin MSOP package. The TC642 also provides over-temperature indication.
Key features include efficient PWM fan drive, FanSense™ fault detection, and support for thermistors. The operating temperature range is 0°C to 85°C, and it is supplied in an SOIC8 SMD package.
The operating voltage range is 3.0V to 5.5V.
The operating temperature range is 0°C to 85°C.
The TC642VOA713 is supplied in an SOIC8 SMD package.
The standard package quantity is 3300 pieces.
