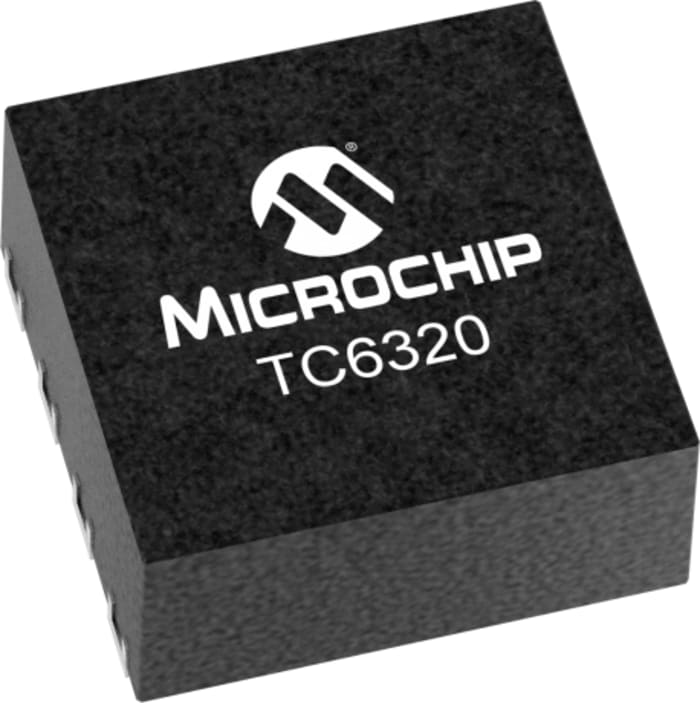

TC6320K6-G The Microchip TC6320K6-G is a complementary pair MOSFET array designed for various electronic applications. It offers a 200V drain-source voltage and a 2A continuous drain current.
Mfr Part #:

TC6320K6-G

Available from 1 distributors
Mfr Name: MICROCHPHS
MICROCHPHS
The Microchip TC6320K6-G is a complementary pair MOSFET array designed for various electronic applications. It offers a 200V drain-source voltage and a 2A continuous drain current.
✓ Total Stock: 4,300 pcs

TC6320K6-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,300 pcs
On Request
4300 pcs On Request 1 On Request On Request 1730+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC6320K6-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Forward Voltage
View Similar Products (0)

TC6320K6-G Description

Short technical summary and product information.

The Microchip TC6320K6-G is a complementary pair MOSFET array featuring both P-channel and N-channel transistors. This device is designed for surface mounting and comes in an 8-pin VDFN package.



Key electrical specifications include a maximum continuous drain current (Id) of 2A and a maximum drain-source voltage (Vds) of 200V. The channel mode is enhancement, and it has a typical forward voltage (Vf) of 1.8V. Each chip contains one element.



This MOSFET array is suitable for applications requiring complementary transistor configurations. Its VDFN package is designed for efficient heat dissipation and space-saving on printed circuit boards. The device is specified for a Moisture Sensitivity Level (MSL) of 1.

TC6320K6-G Quick Information

Product Type: MOSFET Array
Series: TC6320
Canonical Name: Microchip TC6320K6-G Complementary Pair MOSFET Array
Subcategory: MOSFETs

TC6320K6-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC6320K6-G Features

  • Complementary P-channel and N-channel MOSFETs.
  • 200V maximum drain-source voltage.
  • 2A maximum continuous drain current.
  • 8-pin VDFN surface mount package.
  • MSL 1 rating for moisture sensitivity.

TC6320K6-G Applications

  • Suitable for power switching circuits.
  • Ideal for complementary output stages.
  • Used in general-purpose amplification.
  • Applicable in power management designs.

TC6320K6-G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum continuous drain current for the TC6320K6-G?

The maximum continuous drain current (Id) for the TC6320K6-G is 2A.

What is the maximum drain-source voltage of the TC6320K6-G MOSFET array?

The maximum drain-source voltage (Vds) for the TC6320K6-G is 200V.

What type of channel does the TC6320K6-G MOSFET array have?

The TC6320K6-G MOSFET array features both P-Channel and N-Channel types.

What is the package type for the Microchip TC6320K6-G?

The Microchip TC6320K6-G comes in an 8-pin VDFN package.

What is the Moisture Sensitivity Level (MSL) for the TC6320K6-G?

The Moisture Sensitivity Level (MSL) for the TC6320K6-G is 1 Unlimited.
