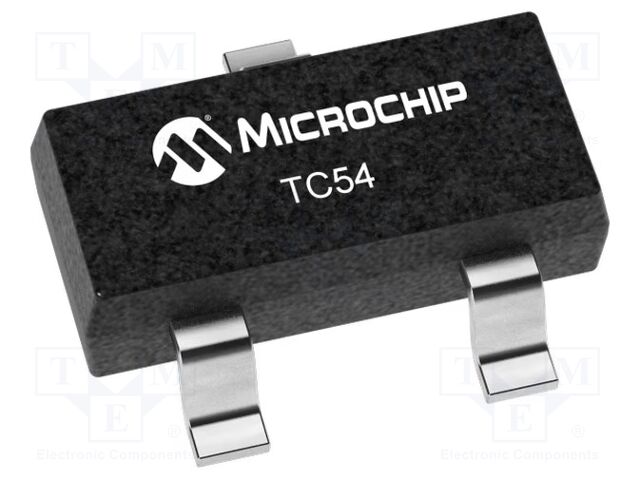

TC54VC4502ECB713 The Microchip Technology TC54VC4502ECB713 is a supervisor IC designed for power monitoring. It features a 4.5V operating voltage and active low reset.
Mfr Part #:

TC54VC4502ECB713

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology TC54VC4502ECB713 is a supervisor IC designed for power monitoring. It features a 4.5V operating voltage and active low reset.
✓ Total Stock: 360 pcs
$ Price Range: $0.75

TC54VC4502ECB713 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
360 pcs
On Request
360 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC54VC4502ECB713 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Voltages Monitored
Operating Temperature
Output
Reset
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

TC54VC4502ECB713 Description

Short technical summary and product information.

The Microchip Technology TC54VC4502ECB713 is a supervisor integrated circuit designed for power management applications. This device monitors a single voltage rail, operating at 4.5V with an active low reset signal.



Key electrical characteristics include a simple reset/power-on reset function and a push-pull, totem pole output. The operating temperature range for this component is -40°C to 85°C (TA).



Packaged in a SOT-23A-3 (TO-236-3, SC-59) surface mount configuration, the TC54VC4502ECB713 is suitable for various electronic designs requiring reliable power supervision. It is listed as RoHS3 compliant.

TC54VC4502ECB713 Quick Information

Product Type: Supervisor IC
Canonical Name: TC54VC4502ECB713
Subcategory: Power Management ICs

TC54VC4502ECB713 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC54VC4502ECB713 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC54VC4502ECB713 Features

  • Single channel supervisor IC
  • 4.5V operating voltage
  • Active low reset function
  • SOT-23A-3 surface mount package
  • Operates -40°C to 85°C

TC54VC4502ECB713 Applications

  • Power-on reset circuits
  • System voltage monitoring
  • Embedded control systems
  • Portable electronic devices

TC54VC4502ECB713 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the threshold voltage of the TC54VC4502ECB713?

The threshold voltage is 4.5V.

What is the operating temperature range?

-40°C to 85°C.

What package options are available?

TO-236-3, SC-59, and SOT-23-3 (SOT-23A-3 supplier package).

What type of reset output does it provide?

Active-low push-pull (totem pole) output.

What is the mounting style?

Surface mount.
