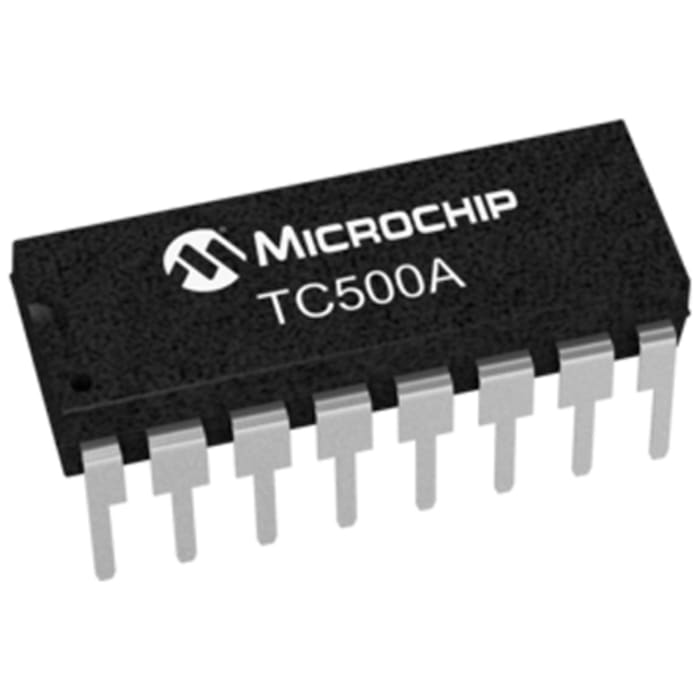

TC500ACPE The Microchip TC500ACPE is a 17-bit precision analog front-end IC. It offers a wide analog input range and operates within a temperature range of 0°C to 70°C.
Mfr Part #:

TC500ACPE

Available from 1 distributors
Mfr Name: MICROCHPHS
MICROCHPHS
The Microchip TC500ACPE is a 17-bit precision analog front-end IC. It offers a wide analog input range and operates within a temperature range of 0°C to 70°C.
✓ Total Stock: 44 pcs

TC500ACPE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC500ACPE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Number of ADCs
Number of Pins
Package / Case
View Similar Products (0)

TC500ACPE Description

Short technical summary and product information.

The Microchip TC500ACPE is a high-precision analog front-end integrated circuit designed for analog signal processing and sensor interfacing. It features a dual-slope A/D converter with a maximum resolution of 17 bits plus sign.



Key electrical specifications include a wide analog input range of ±4.2V and low power dissipation. The device operates within a temperature range of 0°C to 70°C, making it suitable for various applications requiring accurate DC measurements.



This IC is housed in a 16-pin PDIP package and utilizes through-hole mounting. Its design facilitates a 3-pin control interface to a microprocessor, allowing for flexible trade-offs between conversion speed and resolution.

TC500ACPE Quick Information

Product Type: Analog Front End IC
Series: TC500ACPE
Canonical Name: Microchip TC500ACPE Analog Front End IC
Subcategory: Analog to Digital Converters (ADC)

TC500ACPE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC500ACPE Features

  • 17-bit precision analog front-end IC.
  • Wide analog input range of ±4.2V.
  • Operates from 0°C to 70°C.
  • 16-pin PDIP package for through-hole mounting.
  • Low power dissipation.

TC500ACPE Applications

  • Ideal for high-precision industrial sensor interfaces.
  • Suitable for laboratory measurement equipment designs.
  • Used in automated test and measurement systems.
  • Fits well in data acquisition board architectures.

TC500ACPE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the TC500ACPE analog front-end IC?

The TC500ACPE offers a precision of up to 17-bits.

What is the operating temperature range for the TC500ACPE?

The TC500ACPE operates from 0°C to 70°C.

What type of package is the TC500ACPE available in?

The TC500ACPE is available in a 16-pin PDIP package.

How is the TC500ACPE mounted?

The TC500ACPE is designed for through-hole mounting.

What is the analog input range of the TC500ACPE?

The TC500ACPE has a wide analog input range of ±4.2V.
