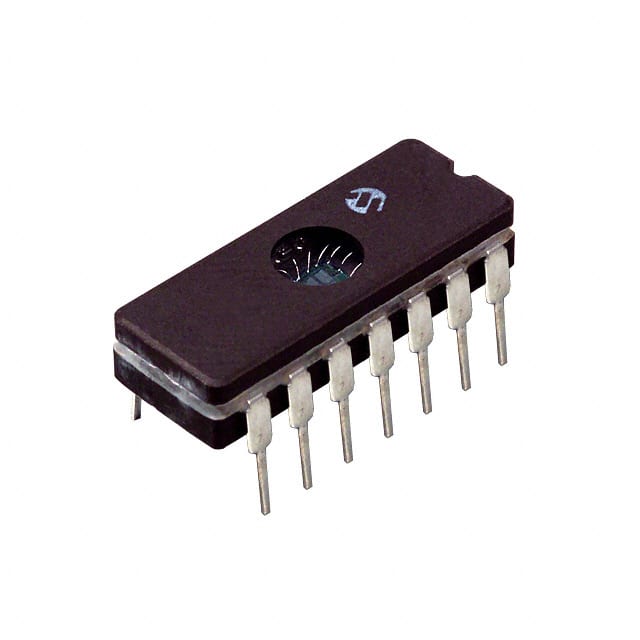

The TC4469EJD from Microchip Technology is an integrated circuit designed as a low-side gate driver. It is capable of delivering a high peak output current of 1.2 A, making it suitable for driving N-Channel and P-Channel MOSFETs.
This device operates across a supply voltage range of 4.5 V to 18 V and supports a logic voltage range of 0.8 V to 2.4 V. It features 4 independent drivers with both inverting and non-inverting input types. Key electrical characteristics include a typical rise time of 25 ns and a typical delay time of 75 ns. The component also provides ESD protection of 2 kV on all pins.
The TC4469EJD is housed in a 14-CERDIP package, designed for through-hole mounting. It is specified for an operating temperature range of -40°C to 150°C (TJ), ensuring robust performance in various thermal environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current for the TC4469EJD is 1.2 A (High Peak).
The supply voltage range for the TC4469EJD is 4.5 V to 18 V.
The typical rise time of the TC4469EJD is 25 ns.
The typical delay time of the TC4469EJD is 75 ns.
The TC4469EJD has an ESD protection of 2 kV on all pins.
The operating temperature range for the TC4469EJD is -40°C to 150°C (TJ).
The TC4469EJD comes in a 14-CERDIP package.
