| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,500 pcs
|
22500 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time | |
| ESD Protection | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Storage Temperature | |
| Supply Voltage | |
| Voltage Supply |

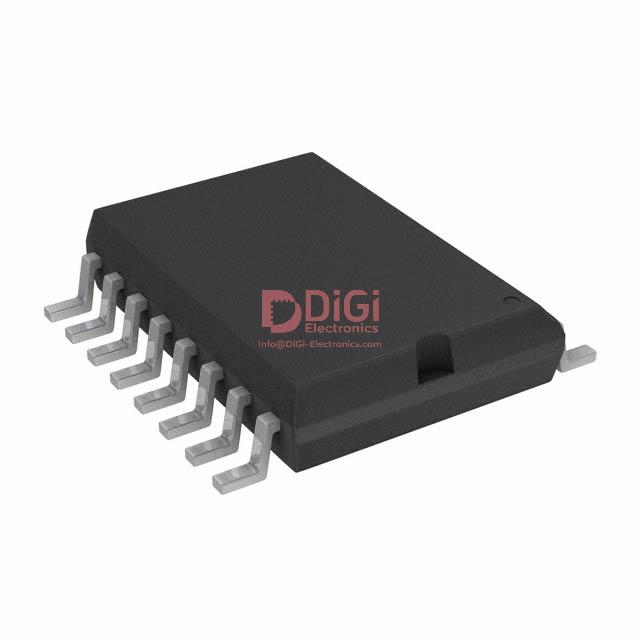

The TC4423EOE from Micrel Inc. is a dual-output buffer and MOSFET driver designed for high-performance applications. It delivers a high peak output current of 3A, making it suitable for driving power MOSFETs efficiently.
This device operates over a wide input supply voltage range of 4.5V to 18V. It features a high capacitive load drive capability, able to charge 1800 pF in 25 ns, and short delay times of less than 40 ns typical. The low output impedance of 3.5 Ω typical ensures robust performance.
The TC4423EOE is available in a 16-SOIC surface mount package, facilitating integration into various electronic designs. Its robust design includes latch-up protection and ESD protection, making it suitable for demanding electrical environments.
Applications for the TC4423EOE include switch mode power supplies, pulse transformer drives, and line drivers where efficient and fast switching of MOSFETs is critical.
The supply voltage range is 4.5V to 18V.
The peak output current is 3A for both source and sink.
The operating junction temperature range is -40°C to 150°C.
The TC4423EOE is offered in a 16-SOIC (0.295", 7.50mm width) surface mount package.
Typical rise time is 23 ns and fall time is 25 ns.
Yes, it has ESD protection rated at 4 kV.
The typical output impedance is 3.5 Ω.
