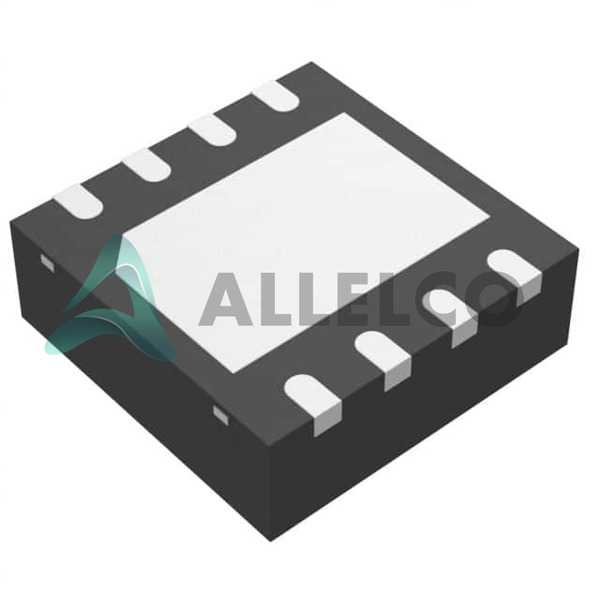

The TC4422CSM from Microchip Technology is a single-channel, low-side gate driver designed for switching applications. It supports non-inverting logic and is suitable for driving IGBT, N-channel, and P-channel MOSFETs.
Key electrical specifications include a wide supply voltage range of 4.5V to 18V, logic voltage thresholds of 0.8V (VIL) and 2.4V (VIH), and high peak output currents of 10A for both source and sink. The device offers fast switching characteristics with a typical rise time of 38ns and a fall time of 33ns.
Packaged in an 8-DFN with an exposed pad for enhanced thermal performance, the TC4422CSM is designed for surface mounting. It operates reliably across a broad temperature range from -40°C to 150°C (TJ).
This gate driver is well-suited for power management circuits in industrial and automotive systems, including motor control, power supplies, DC-DC converters, and power amplifiers where fast, high-current gate drive is required.
The supply voltage range is 4.5V to 18V.
It comes in an 8-DFN-S (6x5) surface mount package.
The operating temperature range is -40°C to 150°C.
The peak source and sink output current is 10A.
The input type is non-inverting.
It can drive IGBTs, N-Channel MOSFETs, and P-Channel MOSFETs.
The driven configuration is low-side.
