| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,995 pcs
|
10995 pcs | On Request | 1 | On Request | On Request | 2016+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time | |
| ESD Protection | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Package / Case | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel |

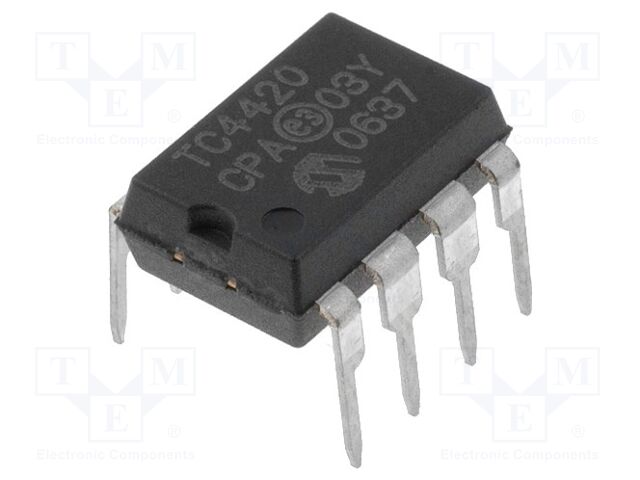

The TC4420CPA from Microchip Technology is a high-performance, single-output MOSFET driver designed for efficient operation. It delivers a peak output current of 6A and operates over a wide supply voltage range of 4.5V to 18V.
Key electrical characteristics include matched rise and fall times of 25 ns into a 2500 pF load, and a typical delay time of 55 ns. The driver is capable of driving high capacitive loads up to 10,000 pF and features a low output impedance of 2.5 Ω. Its input is compatible with both TTL and CMOS logic levels and can withstand negative swings up to 5V.
This device is fabricated in CMOS technology for lower power consumption compared to bipolar drivers. It is virtually latch-up proof and designed to withstand over 1.5A of reverse output current. The TC4420CPA is available in a space-saving 8-pin DIP package, suitable for through-hole mounting.
Applications for the TC4420CPA include switch-mode power supplies, motor controls, pulse transformer drivers, and Class D switching amplifiers. Its robust design and high current drive capability make it suitable for demanding power applications.
The peak output current is 6 A.
The supply voltage range is 4.5 V to 18 V.
The operating temperature range is 0°C to 70°C.
The TC4420CPA is available in a DIP8 package.
Typical rise and fall times are 25 ns with a 2500 pF load.
The ESD protection is 4 kV.
The output impedance is 2.5 Ω.
