| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,272 pcs
|
26272 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESD Protection | |
| Gate Type | |
| Lead Style | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Package / Case | |
| Supply Voltage | |
| Tape & Reel |

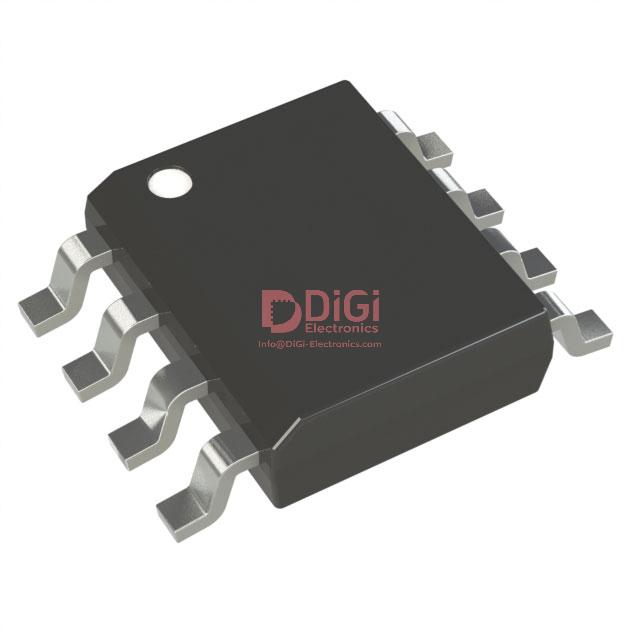

The Microchip Technology TC427COA is a dual CMOS high-speed driver designed to translate TTL/CMOS input voltage levels into rail-to-rail output voltage swings. This device offers a high peak output current of 1.5A and a fast switching speed of 30 ns with a 1000 pF load.
With a wide operating supply voltage range of 4.5V to 18V, the TC427COA is suitable for various applications. It features low input current of 1 µA, making it compatible with CMOS/bipolar switch-mode power supply control ICs. The output impedance is a low 6 Ω, and it provides high output voltage swing within 25 mV of the supply rails or ground.
This gate driver is available in an 8-SOIC surface mount package. Its design makes it ideal for applications such as switch mode power supplies, pulse transformer drives, clock line drivers, and coax cable drivers. The TC427COA is a noninverting driver, part of the TC426/TC427/TC428 family.
The TC427COA operates from a supply voltage of 4.5V to 18V.
The TC427COA provides a peak output current of 1.5A.
The switching speed of the TC427COA is 30 ns with a 1000 pF load.
The operating temperature range for the TC427COA is 0°C to 70°C.
The TC427COA is available in an 8-SOIC package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
