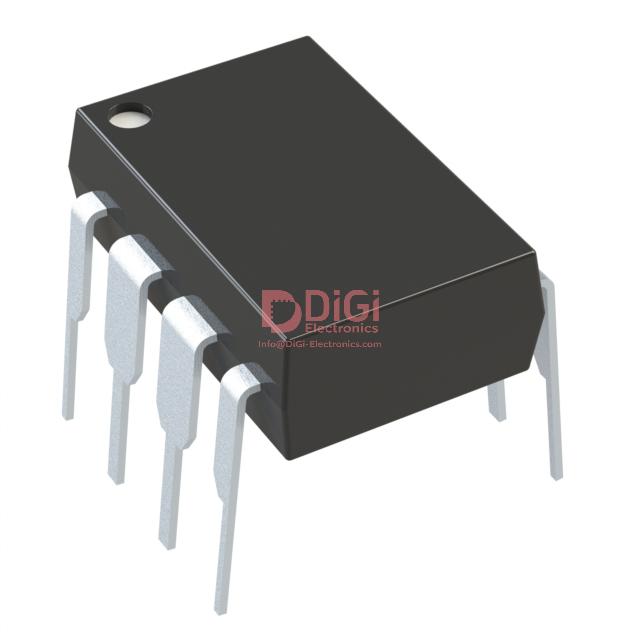

TC426CPA The Microchip Technology TC426CPA is a dual CMOS high-speed driver designed for applications requiring fast switching and high peak output current. It operates from a 4.5V to 18V supply.
Mfr Part #:

TC426CPA

Available from 1 distributors
Mfr Name: MIC
MIC
The Microchip Technology TC426CPA is a dual CMOS high-speed driver designed for applications requiring fast switching and high peak output current. It operates from a 4.5V to 18V supply.
✓ Total Stock: 9,927 pcs

TC426CPA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,927 pcs
On Request
9927 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC426CPA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
ESD Protection
Gate Type
Input Type
Lead Style
Mounting Type
Number of Drivers
Operating Temperature
Package / Case
Storage Temperature
Supplier Device Package
Supply Voltage
View Similar Products (0)

TC426CPA Description

Short technical summary and product information.

The TC426CPA from Microchip Technology is a dual CMOS high-speed driver. It translates TTL/CMOS input voltage levels into rail-to-rail output voltage swings, with the CMOS output staying within 25 mV of the ground or positive supply.



This driver features a low-impedance, high-current output capable of swinging a 1000 pF load to 18V in 30 nsec. Key electrical specifications include a wide operating supply voltage range of 4.5V to 18V, a high peak output current of 1.5A, and low input current of 1 µA. The device offers fast switching speeds of 30 ns.



Ideal for applications such as switch mode power supplies, pulse transformer drives, clock line drivers, and coax cable drivers, the TC426CPA is designed for power MOSFET drivers, line drivers, and DC-to-DC converter building blocks. It is available in an 8-PDIP through-hole package.

TC426CPA Quick Information

Product Type: Gate Driver
Canonical Name: TC426CPA Dual CMOS High-Speed Driver
Subcategory: Low-Side Gate Driver

TC426CPA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TC426CPA Features

  • Dual CMOS high-speed driver.
  • 1.5A peak output current capability.
  • Fast 30 ns switching speed.
  • Wide 4.5V to 18V supply voltage.
  • Inverting input configuration.

TC426CPA Applications

  • Ideal for switch mode power supplies.
  • Suitable for pulse transformer drive.
  • Used as a clock line driver.
  • Applicable for coax cable driver.

TC426CPA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

4.5V to 18V.

What is the peak output current?

1.5A source and sink.

What is the switching speed?

30 ns typical with 1000 pF load.

What is the operating temperature range?

0°C to 70°C.

What is the package type?

8-DIP (0.300", 7.62mm) with through-hole mounting.

What is the input logic voltage threshold?

Low: 0.8V, High: 2.4V.

What is the latch-up resistance?

Greater than 500 mA.
