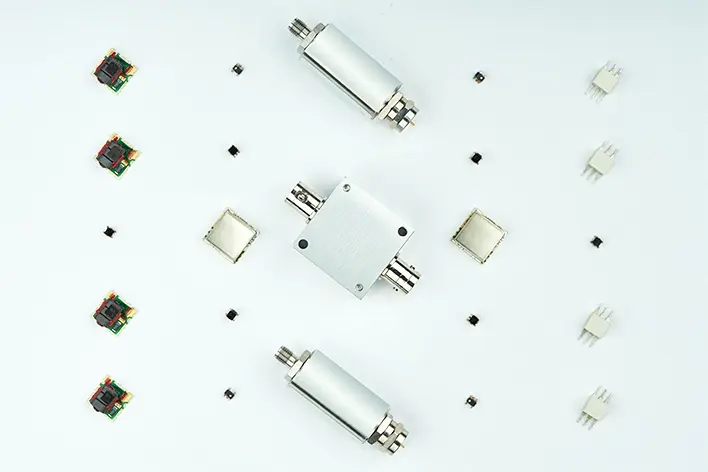

The Mini-Circuits TC4-19+ is a surface mount RF transformer designed for a wide frequency range from 10 MHz to 1.9 GHz. It offers a 1:4 impedance ratio, making it suitable for various RF applications.
Key electrical specifications include a maximum insertion loss of 3 dB and a minimum return loss of 7.01 dB. The operating temperature range is -20°C to +85°C, with a storage temperature range of -55°C to +100°C. The transformer can handle up to 0.25 W of RF power and 30 mA of DC current.
This component is housed in a 5-SMD module package and is designed for surface mounting. Its features include a balanced transmission line with a secondary center tap, a plastic base with leads, and aqueous washability. Applications include PCS and Cellular.
The TC4-19+ is also noted for its upgraded version, the TC4-19X+, which includes a Top Hat® feature for faster pick-and-place operations and visual identification marking.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 10 MHz to 1.9 GHz.
The impedance ratio is 1:4.
The maximum insertion loss is 3 dB.
The operating temperature range is -20°C to +85°C.
The TC4-19+ is in a 5-SMD Module package.
The TC4-19+ is a surface mount component.
