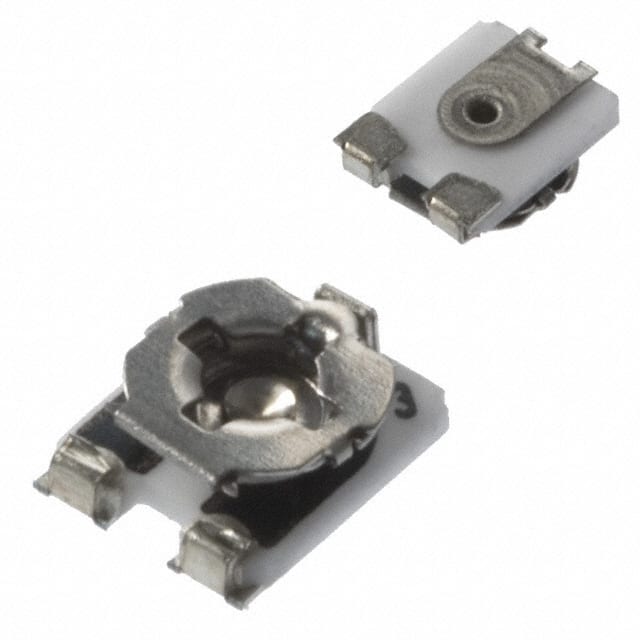

TC33X-2-104E The Bourns TC33X-2-104E is a trimmer potentiometer with 100 kΩ resistance and ±25% tolerance. It features a Cermet resistive material and J Lead termination style.
Mfr Part #:

TC33X-2-104E

Available from 2 distributors
Mfr Name: Bourns
Bourns
The Bourns TC33X-2-104E is a trimmer potentiometer with 100 kΩ resistance and ±25% tolerance. It features a Cermet resistive material and J Lead termination style.
✓ Total Stock: 2,540 pcs
$ Price Range: $0.19

TC33X-2-104E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
40 pcs
$0.19 ℹ
Qty Price
0+ 0.19
40 pcs $0.19
QtyPrice
0+ 0.19
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TC33X-2-104E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Lead Style
Mounting Type
Number of Turns
Power (Watts)
Resistance
Resistive Material
Temperature Coefficient
Temperature Range
Termination Style
Tolerance
View Similar Products (0)

TC33X-2-104E Description

Short technical summary and product information.

The Bourns TC33X-2-104E is a 3mm SMD Trimpot® trimming potentiometer designed for reflow soldering and compatible with automatic adjustment equipment. It offers a resistance of 100 kΩ with a standard tolerance of ±25% and a power rating of 0.1W (1/10W).



This trimmer potentiometer features a Cermet resistive material and a J Lead termination style, suitable for surface mount applications. It has a top adjustment type and a single turn for precise setting. The operating temperature range is -40 °C to +100 °C, with a temperature coefficient of ±250 ppm/°C.



The physical dimensions are rectangular, measuring 0.150" x 0.142" face (3.80mm x 3.60mm). It meets EIA/EIAJ standard trimmer footprint requirements. The standard packaging is 2500 pieces per 7" reel.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

TC33X-2-104E Quick Information

Product Type: Trimmer Potentiometer
Series: Trimpot® 3364
Canonical Name: Bourns TC33X-2-104E Trimmer Potentiometer, 100 kΩ, ±25% Tolerance, 0.1W
Subcategory: Trimmer Potentiometers

TC33X-2-104E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TC33X-2-104E Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

TC33X-2-104E Features

  • 100 kΩ resistance with ±25% tolerance.
  • 0.1W power rating suitable for trimming applications.
  • Cermet resistive material for stability.
  • Surface mount with J Lead termination.
  • Top adjustment for precise control.

TC33X-2-104E Applications

  • Ideal for circuit calibration and adjustment.
  • Suitable for automated pick and place assembly.
  • Used in electronic control systems.
  • Applications requiring precise resistance setting.

TC33X-2-104E FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the TC33X-2-104E trimmer potentiometer?

The resistance of the TC33X-2-104E trimmer potentiometer is 100 kΩ.

What is the tolerance for the TC33X-2-104E trimmer potentiometer?

The tolerance for the TC33X-2-104E trimmer potentiometer is ±25%.

What is the power rating of the TC33X-2-104E trimmer potentiometer?

The power rating of the TC33X-2-104E trimmer potentiometer is 0.1W (1/10W).

What is the temperature coefficient of the TC33X-2-104E trimmer potentiometer?

The temperature coefficient of the TC33X-2-104E trimmer potentiometer is ±250 ppm/°C.

How is the TC33X-2-104E trimmer potentiometer mounted?

The TC33X-2-104E trimmer potentiometer is a surface mount component.

What is the standard package quantity for the TC33X-2-104E trimmer potentiometer?

The standard package quantity for the TC33X-2-104E trimmer potentiometer is 2500 pieces per 7" reel.
